LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows

Name: LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows
Brand: SHANGHAI VALUES GLASS CO., LTD
SKU: Vacuum Glass
Price: 2,999.40 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: VALUES GLASS

Certification: Upon Request

Model Number: Vacuum Glass

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: Negotiable

Packaging Details: Plywood Pallet or per request

Delivery Time: 14 Days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 8,000 sq.meter/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      10mm Windows Vacuum Insulated Glass, Vacuum Insulated Tempered Heat Proof Glass, Half Tempered Vacuum Insulated Glass


Raw Material:	Clear Glass, LOW E Glass, Low Iron Glass	U Value:	0.4W/(m2*K)
Thickness:	10mm 8mm Others	Glass:	Fully Tempered, Half Tempered
Application:	Window, Door, Curtain Wall, Skylight	Product Name:	Vacuum Insulated Glass

Raw Material:	Clear Glass, LOW E Glass, Low Iron Glass
U Value:	0.4W/(m2*K)
Thickness:	10mm 8mm Others
Glass:	Fully Tempered, Half Tempered
Application:	Window, Door, Curtain Wall, Skylight
Product Name:	Vacuum Insulated Glass

Description

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows

Vacuum Glass Vacuum Insulated Glass Energy Saving Glass Vacuum Laminated Glass

Product Description:

Product Name	Vaccum Glass
Raw Material Glass	Clear Glass, LOW E glass, Low Iron Glass
Thickness	8.3mm
Max Size	1,500*2,500mm
Min Size	300 * 300mm
U Value	0.4W/(m2*K)

Application:

1) Office buildings,hospitals,hotels, house and buildings with heating or cooling requirements.
2) For use in airport control towers, train windows and other environments
that needregulated Airports and buildings near highways and railways,
that require sound insulation properties.

Theory & Structure:

Vacuum glass is based on the proven vacuum thermos bottle.

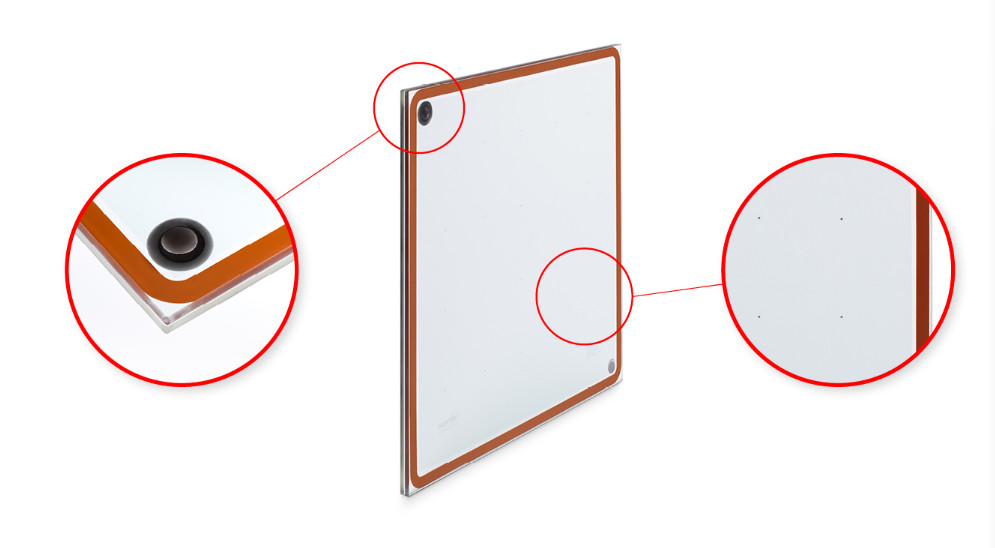

By separating two panes of glass with small pillars and sealing the edges, a micro-void space is created between the two panes, all of the air is removed. The height of the void space between the panes is kept 0.2 mm by the tiny pillars, and the vacuum is pulled down to 10-4 Pa.

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 0

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 1

Combination:

Due to the inside vacuum, the conduction and convection of heat between the panes is almost nil. In addition, the LOW-E coating reflects more than 85% of the infrared back into the room. For these reasons, vacuum glass windows prevent nearly all heat loss from conduction, convection and radiation.

Advantage:

-- Better U Value, Less Weight.

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 3

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 4

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 5

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 6

LOW - E Tempered Vacuum Insulated Glass Heat Proof For Windows 7
