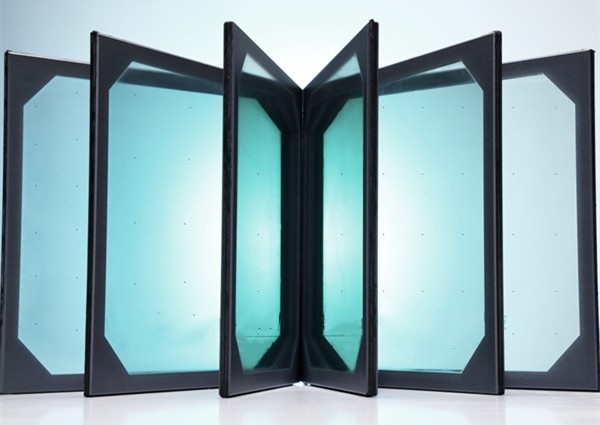

Skylight Vacuum Sealed Windows Full Tempered For Buildings

Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number Vacuum Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 8,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Raw Material Clear Glass, LOW E Glass, Low Iron Glass U Value 0.4W/(m2*K)
Thickness 8.3mm Glass Fully Tempered, Half Tempered
Application Window, Door, Curtain Wall, Skylight Product Name Vacuum Insulated Glass
Highlight

Skylight vacuum sealed windows

,

full tempered vacuum sealed windows

,

8.3mm vacuum insulated windows

Leave a Message
Product Description

Vacuum Glass Vacuum Insulated Glass Energy Saving Glass Vacuum Laminated Glass





Product Description:

Product Name Vaccum Glass
Raw Material Glass Clear Glass, LOW E glass, Low Iron Glass
Thickness 8.3mm
Max Size

1,500*2,500mm

Min Size 300 * 300mm
U Value 0.4W/(m2*K)

Application:

1) Office buildings,hospitals,hotels, house and buildings with heating or cooling requirements.
2) For use in airport control towers, train windows and other environments
that needregulated Airports and buildings near highways and railways,
that require sound insulation properties.



Theory & Structure:

Vacuum glass is based on the proven vacuum thermos bottle.



By separating two panes of glass with small pillars and sealing the edges, a micro-void space is created between the two panes, all of the air is removed. The height of the void space between the panes is kept 0.2 mm by the tiny pillars, and the vacuum is pulled down to 10-4 Pa.

Skylight Vacuum Sealed Windows Full Tempered For Buildings 0

Skylight Vacuum Sealed Windows Full Tempered For Buildings 1




Combination:

Due to the inside vacuum, the conduction and convection of heat between the panes is almost nil. In addition, the LOW-E coating reflects more than 85% of the infrared back into the room. For these reasons, vacuum glass windows prevent nearly all heat loss from conduction, convection and radiation.

Skylight Vacuum Sealed Windows Full Tempered For Buildings 2







Advantage:

-- Better U Value, Less Weight.

Skylight Vacuum Sealed Windows Full Tempered For Buildings 3

Skylight Vacuum Sealed Windows Full Tempered For Buildings 4



Skylight Vacuum Sealed Windows Full Tempered For Buildings 5
