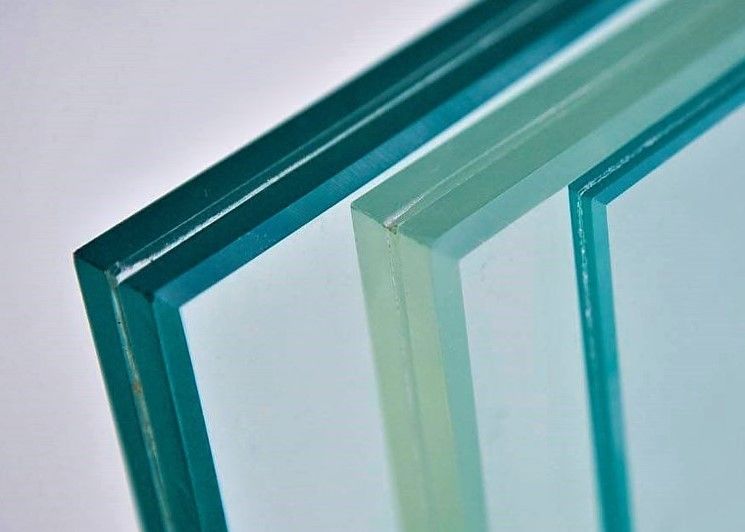

LOW E Vacuum Insulated Glass Micro Void Space Half Tempered
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRaw Material | Clear Glass, LOW E Glass, Low Iron Glass | U Value | 0.4W/(m2*K) |
---|---|---|---|
Thickness | 8.3mm | Glass | Fully Tempered, Half Tempered |
Application | Window, Door, Curtain Wall, Skylight | Product Name | Vacuum Insulated Glass |
High Light | LOW E Vacuum Insulated Glass,micro void Vacuum Insulated Glass,micro void vacuum sealed glass |
Vacuum Glass Vacuum Insulated Glass Energy Saving Glass Vacuum Laminated Glass
Product Description:
Product Name |
Vaccum Glass |
Raw Material Glass |
Clear Glass, LOW E glass, Low Iron Glass |
Thickness |
8.3mm |
Max Size |
1,500*2,500mm |
Min Size |
300 * 300mm |
U Value |
0.4W/(m2*K) |
Theory & Structure:
Vacuum glass is based on the proven vacuum thermos bottle.
By separating two panes of glass with small pillars and sealing the edges, a micro-void space is created between the two panes, all of the air is removed. The height of the void space between the panes is kept 0.2 mm by the tiny pillars, and the vacuum is pulled down to 10-4 Pa.
Combination:
Due to the inside vacuum, the conduction and convection of heat between the panes is almost nil. In addition, the LOW-E coating reflects more than 85% of the infrared back into the room. For these reasons, vacuum glass windows prevent nearly all heat loss from conduction, convection and radiation.
Advantage:
-- Better U Value, Less Weight.
