Tint Switchable Glass Electric Window Film Smart For Office 5mm

Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number Smart Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month
Product Details
Glass Clear Glass, Ultra Clear Glass Technique Lamination
Thickness 5+5mm / 6+6mm Width Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film)
Light Transmittance >=86% (ON) / <=10% (OFF) Film Color Clear, Milky, Grey, Blue, Green, Red
Haze <=3%; >=90% Application Door, Office, Bank, Hotel, Hospital
High Light

Office Switchable Smart Glass Film

,

Tint Switchable Electric Window Film

,

Electric Smart Window Film 5mm

Leave a Message
Product Description

Gray Smart Tint Switchable Glass Electric Window Film



Smart film, also called Switchable film, is a product that is capable of adjusting light transmission between transparent and opaque using AC power. Due to moisture sensitivity, earlier versions of the film were used only to make smart glass by lamination on glass. The self-adhesive film can be pasted on the glass directly,no need lamination. After installation,connect with power supply, the glass will turn from opaque to transparent. Keep your room have enough light to enter the room, but also keep privacy.



Three major features of smart film

1. Privacy Protection

When the power is on (transparent), the space can be expanded to the maximum extent, which is convenient for internal and external communication. But when the power is off (opaque), it can instantly create a privacy space.

2 .Energy-saving and Cost-reducing

The smart film and glass are made into smart switchable glass, which has good thermal insulation effect to reduce indoor solar heat energy, and air conditioning power consumption.

3. Screen Projection

Using a projector to project onto the smart film (self-adhesive film) can produce a clear projection effect. When combined with infrared touch frame, you can also build a large-size (more than 100 inches) touch screen.





Product Description of Switchable Smart Glass:



Parameters Model Value
Optical Parameters Visible Light Transmittance Power ON >85%
Power OFF >55%
Parellel light Power ON >66%
Power OFF <1.5%
Haze Power ON <4%
Power OFF >90%
Viewing angle Power ON >140°
Electricity Parameters Operating voltage Power ON 60V AC
Threshold voltage Power ON <36V
Response Time OFF -> ON <200ms
ON -> OFF <10ms
Power Consumption Power ON <5W/M²
Physical Parameters Thickness 11 (5+5mm glass) / 13 (6+6mm glass)mm
Max Width 1.8 Meters
Enviorment Parameters Working Temperature —20°C — 70°C
Storage Temperature —20°C —80°C
Life Time >10 years
Times of ON/OFF >100,000 times


Function of Switchable Smart Glass:


1.Privacy protection. As most important function, smart glass can be changed from transparent to opaque via easy model ON & OFF.
2. Sound proof: Smart Glass can insulate the noise and keep our room quiet.
3. Safety: Smart glass is a kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
4. Blocks more than 99% UV rays ,avoiding fading in the room.





Application of Switchable Smart Glass:

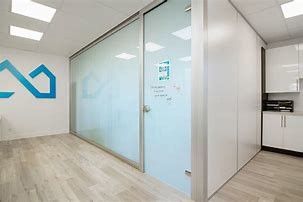

  1. Office partition
  2. Bathrooms
  3. Conference rooms
  4. Hospital / Clinics
  5. Luxury Villa / Private room
  6. Optical shutters
  7. Security windows
  8. Skylights
  9. Hotel&Resturant

Tint Switchable Glass Electric Window Film Smart For Office 5mm 0



Our advantage:


  • Our smart glass could be produced with two methods, with autoclave and with oven.
  • Our smart glass has the best transparency when power on , least haze, and it has a good privacy function when power off.
  • Both flat and bent smart glass could be provided as per design request.
  • Professional seaworthy wooden crate packing for LCL and client receive it safely.
  • Best Service before and after sales.
  • Best technical support from our professional team with years experience.

Packaging & Delivery:



Standard export package: Plywood or wooden crate

Corner protector and protective film is available

Crates shall be banded by steel bands





FAQ:



Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.



Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.



Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.



Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.



Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.



Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;

-- If urgent case, we will call customers to immediately discuss and solve.
