Non Adhesive Sandwiched PDLC 1.8M Smart Switchable Glass Film

Place of Origin China
Certification Upon Request
Model Number Smart Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Switchable Smart Glass Film Color Clear, Milky, Grey, Blue, Green, Red
Size Customer Size Thickness 5+5mm / 6+6mm
Light Transmittance >=86% (ON) / <=10% (OFF) Haze <=3%; >=90%
Working Voltage AC48~60V Application Door, Office, Bank, Hotel, Hospital
High Light

Non Adhesive Smart Film Glass


PDLC Switchable Smart Film


1.8M Smart Switchable Glass Film

Leave a Message
Product Description

Self-Adhesive PDLC Switchable Smart Glass For Window Shower Room Privacy


Switchable Smart glass ( Switchable Glass, Privacy Glass, ,PDLC Glass, Magic Glass) is a kind of glass with liquid crystal film sandwiched between two layers of glass. The liquid crystal film is covered by a PVB film in the center, and then placed in an autoclave or a general one-step furnace through high temperature and high pressure. Smart glass not only has privacy protection function, but also has all the application characteristics of safety glass.


When the smart glass is turned off, the liquid crystal molecules will appear irregularly dispersed. At this time, the glass will appear transparent and opaque; when turn on, the liquid crystal molecules are arranged neatly, and light can penetrate freely. At this time, the smart glass instantly appears transparent.



Features of Switchable Smart Glass:


1. Privacy protection function: The main function of smart glass is privacy protection function, which can control the transparent and opaque state of the glass at any time.

2. Projection function: Smart glass is still this very excellent projection hard screen. In a suitable light environment, if you choose a high-lumen projector, the projection imaging effect is very clear and outstanding. (Recommended to use rear projection imaging method)

3. It has the advantages of safety glass, including the safety performance of preventing debris from splashing after rupture, and good anti-strike strength.

4. Environmental protection features: the smart film in the middle of the smart glass can insulate and block more than 99% of ultraviolet rays and 98% of infrared rays. Shield some infrared rays to reduce heat radiation and transmission. And shielding ultraviolet rays can protect indoor furnishings from fading and aging due to ultraviolet radiation, and protect personnel from diseases caused by direct ultraviolet rays.

5. Sound insulation characteristics: The smart film in the middle of the smart glass have sound damping effect. Partially block noise.


Product Description of Switchable Smart Glass:


Parameters Model Value
Optical Parameters Visible Light Transmittance Power ON >85%
Power OFF >55%
Parellel light Power ON >66%
Power OFF <1.5%
Haze Power ON <4%
Power OFF >90%
Viewing angle Power ON >140°
Electricity Parameters Operating voltage Power ON 60V AC
Threshold voltage Power ON <36V
Response Time OFF -> ON <200ms
ON -> OFF <10ms
Power Consumption Power ON <5W/M²
Physical Parameters Thickness 11 (5+5mm glass) / 13 (6+6mm glass)mm
Max Width 1.8 Meters
Enviorment Parameters Working Temperature —20°C — 70°C
Storage Temperature —20°C —80°C
Life Time >10 years
Times of ON/OFF >100,000 times


Application of Switchable Smart Glass:

  1. Office partition
  2. Bathrooms
  3. Conference rooms
  4. Hospital / Clinics
  5. Luxury Villa / Private room
  6. Optical shutters
  7. Security windows
  8. Skylights
  9. Hotel&Resturant

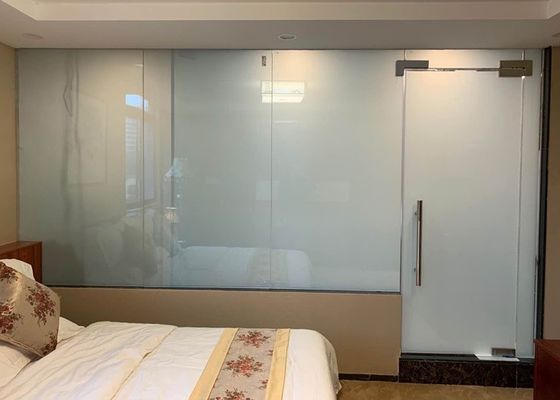

Non Adhesive Sandwiched  PDLC 1.8M Smart Switchable Glass Film 0


Our advantage:

  • Our smart glass could be produced with two methods, with autoclave and with oven.
  • Our smart glass has the best transparency when power on , least haze, and it has a good privacy function when power off.
  • Both flat and bent smart glass could be provided as per design request.
  • Professional seaworthy wooden crate packing for LCL and client receive it safely.
  • Best Service before and after sales.
  • Best technical support from our professional team with years experience.




Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.


Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.


Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.


Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.


Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.


Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;

-- If urgent case, we will call customers to immediately discuss and solve.
