EN12150 19mm Curved Tinted Tempered Safety Glass Heat Resistance

Place of Origin China
Brand Name VALUES GLASS
Certification EN12150 CCC
Model Number Tempered Glass Panels
Minimum Order Quantity 5 pieces
Price negotiation

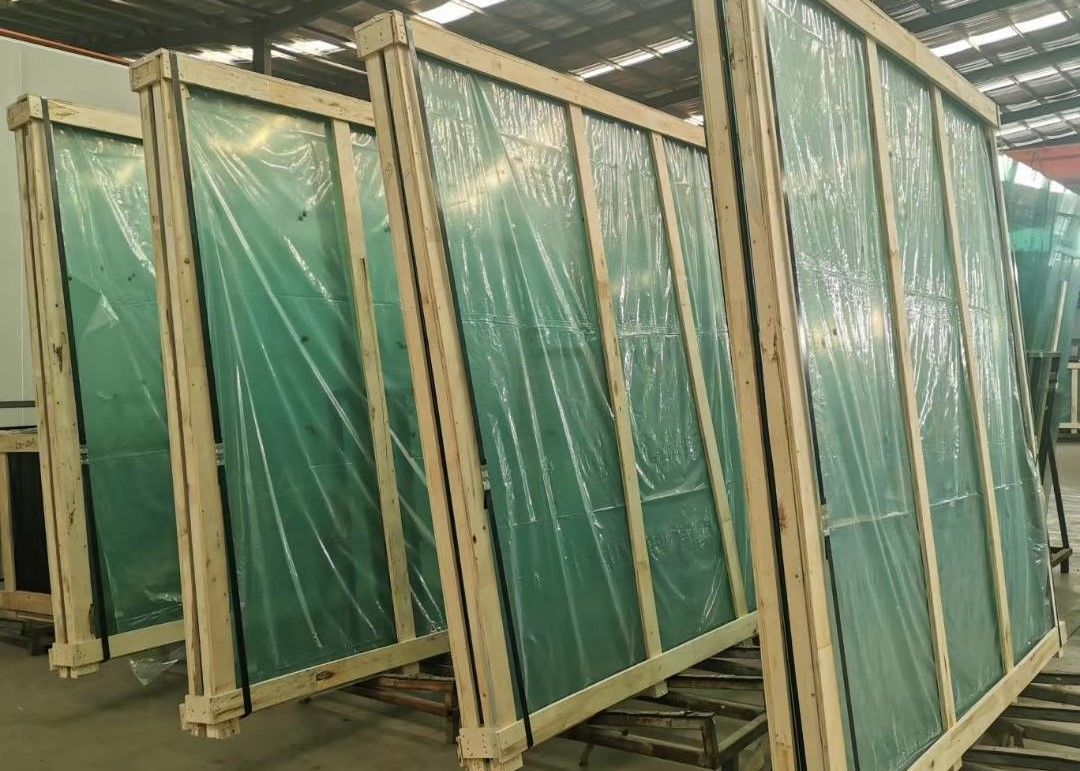

Packaging Details Sea worthy wooden crates
Supply Ability 200 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tempered Glass Panels Material Float Glass
Color Clear, Green, Blue, Grey, Bronze Process Clear Glass, Tempered Glass
Shape Curve, Flat Edge Safety Edge Or As Your Demand
Function Decorative Glass, Heat Reflective Glass Thickness 3-19mm
High Light

19mm curved tempered glass

,

EN12150 tempered safety glass

,

EN12150 tinted tempered glass

Leave a Message
Product Description

Ultra Clear Tempered Glass with Polished Edge Low Iron Toughened Glass

About Tempered Glass Panels:

Tempered glass is a type of safety glass manufactured with the aid of heat or chemicals used to strengthen the glass. This process is sometimes referred to as “tempering.” Tempered glass can be up to four times stronger than typical annealed glass of the same size and thickness.



Specification of Tempered Glass Panels:

Product Name Ultra Clear Tempered Glass with Polished Edge Low Iron Toughened Glass
Raw Material Clear Glass, Ultra Clear (Low Iron) Glass, Tinted Glass
Glass Process Heat treatment or Chemical treatment
Glass Color Clear, Blue, Green, Bronze, Grey and etc
Thickness 2.1 mm - 19 mm
Max dimension 3660 x 2440 mm
Min dimension 20 x 20 mm
Glass Shape Flat or Curved / Bent
Fragment (Area 5*5cm) T<=3mm, Fragment>=30 PCS; 4mm<=T<=12mm, Fragment>=40 PCS
Shock resistance 5~7 times of annealed glass
Heat resistance Thermal shock at about 300℃
Withstand pressure 3~5 times of annealed glass
Holes or cutout Drawing or sketch is needed
Printing Available per request





Applications of Tempered Glass Panels:

  • There is a wide scope for the use of tempered glass in the building industry. It can be used to raise the elemental beauty of exteriors and interiors by using it on facades, showroom shelves, dividers, shower cabins, doors and etc.
  • High resistance to thermal stress and small missile impact makes tempered glass an ideal choice for sloped glazing.
  • The manufacturing industry uses tempered glass in ovens, refrigerators, fireplace screens, and shelves.
  • In the motor vehicle industry, tempered glass is commonly used inside and rear windows.

EN12150  19mm Curved Tinted Tempered Safety Glass Heat Resistance 0





Advantage of Tempered Glass Panels:

1. Safety

Safety is the first and most important when it comes to the tempered glass. Since it breaks into small, circular pieces, it reduces the risk of injury as compared to the normal glass which breaks into sharp, jagged shards.
2. Strength
Another benefit of tempered glass that is worth mentioning is the strength that comes with this type of glass. The process of heating and applying chemicals strengthens the glass accordingly. This makes it to be more appropriate to places which require maximum durability.
3. Heat resistance
Did you know that tempered glass is more heat resistant as compared to the normal glass? The molecules become more resistant to higher temperatures immediately the glass is taken through the tampering process which uses heat to strengthen it. This means that the glass won’t give in and melt or weaken even when you directly apply the flame. That is why they are most ideal in places such as laboratory uses, fire engines and buildings that require strict fire codes.
4. Designs and varieties
You are allowed to experiment with various attractive designs and patterns with this type of glass. The standard widely used types are clear or obscure varieties. You can even choose to go with colorful glass, stained or insulated and all of them will do a great job.





FAQ:

Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.

Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.

Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.

Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.

Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.

Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;



VALUES GLASS, a professional supplier of Glass and Mirror in Shanghai, China, sepcializing in deep processing and fine processing. Since the year of 2005, our business has expanded rapidly all over the world, including United States, Australia, South Korea, Germany and other European countries, and our company has won high reputation from customers with efficient communicate, competitive prices, quality products, on time delivery and best service.
