En12150 Construction Large Jumbo Tempered Glass Panels Sheet

Place of Origin China
Brand Name VALUES GLASS
Certification EN12150 CCC
Model Number Tempered Glass Panels
Minimum Order Quantity 5 pieces
Price negotiation
Packaging Details Sea worthy wooden crates
Supply Ability 200 Piece/Pieces per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Tempered Glass Panels Material Float Glass
Color Clear, Green, Blue, Grey, Bronze Process Clear Glass, Tempered Glass
Shape Curve, Flat Edge Safety Edge Or As Your Demand
Function Decorative Glass, Heat Reflective Glass Thickness 3-19mm
Highlight

Jumbo tempered glass panels

,

EN12150 tempered glass panels

,

EN12150 tempered glass sheet

Leave a Message
Product Description

Large Size Tempered Glass Jumbo Size Toughened Glass Panel for Construction Glass



About Tempered Glass Panels:

Manufactured through a process of extreme heating and rapid cooling, tempered glass is much harder than normal glass. In the case that tempered glass does break, it shatters into small pebbles that are void of dangerous, sharp edges. As tempered glass is considered to be much safer than normal glass, you may often here it referred to as safety glass or toughened glass.  Another benefit of tempered glass is the ability to stand up to moderate heat (470°F). The process that creates this strengthened glass also makes it heat-resistant. This makes tempered glass a great solution for a situation where there is a danger of the glass breaking due to impact or moderate heat.

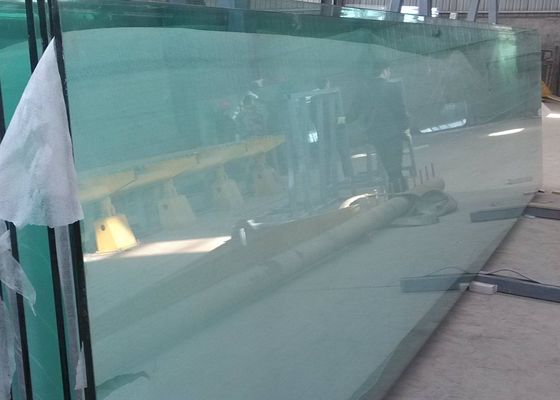

En12150 Construction Large Jumbo Tempered Glass Panels Sheet 0


Specification of Tempered Glass Panels:

Product Name Large Size Tempered Glass Jumbo Size Toughened Glass Panel for Construction Glass
Raw Material Clear Glass, Ultra Clear (Low Iron) Glass, Tinted Glass
Glass Process Heat treatment or Chemical treatment
Glass Color Clear, Blue, Green, Bronze, Grey and etc
Thickness 2.1 mm - 19 mm
Max dimension 3660 x 2440 mm
Min dimension 20 x 20 mm
Glass Shape Flat or Curved / Bent
Fragment (Area 5*5cm) T<=3mm, Fragment>=30 PCS;4mm<=T<=12mm, Fragment>=40 PCS
Shock resistance 5~7 times of annealed glass
Heat resistance Thermal shock at about 300℃
Withstand pressure 3~5 times of annealed glass
Holes or cutout Drawing or sketch is needed
Printing Available per request


Advantage of Tempered Glass Panels:


  1. Impact resistance: The impact resistance of tempered glass is very high compared with float glass. This helps withstand extreme conditions and temperatures.
  2. Strength: Tempered glass can be 4-5 times stronger than annealed glass, making it suitable for more demanding applications with high environmental loads.
  3. Safety: When the tempered glass is broken, it will be little fragments, not sharp big pieces, which means it will not cause injury to people.


Applications of Tempered Glass Panels:
1. Construction Glass
Tempered glass is used in construction of house: shower door glass, window glass, bathtub enclosure glass, sliding door glass, skylights glass, glass facades, elevator glass, swimming pool glass fence, and glass balcony doors.
2. Kitchen Appliance Glass:
Tempered glass is used in stoves, ovens, and other kitchen appliances that need heat resistance glass.
3. Railing Glass
The glass railings in offices, department stores, commercial and public spaces are made of tempered glass for safety.
4. Office Partition Glass:
The office room partitions are made of tempered glass, so that it will not cause injury when an employee bumps into and accidentally break them.
5. Countertop and Tabletop Glass
With the characteristic of heat resistance and scratches resistance, tempered glass is often used to make conference tables, kitchen countertops, reception desks, coffee tables, and other types of furniture.
6. Solar Panel Glass Cover
The thermal strength, heat resistance, and durability of tempered glass make it the ideal material for solar panels glass cover.

FAQ:
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;

VALUES GLASS, a professional supplier of Glass and Mirror in Shanghai, China, sepcializing in deep processing and fine processing. Since the year of 2005, our business has expanded rapidly all over the world, including United States, Australia, South Korea, Germany and other European countries, and our company has won high reputation from customers with efficient communicate, competitive prices, quality products, on time delivery and best service.
