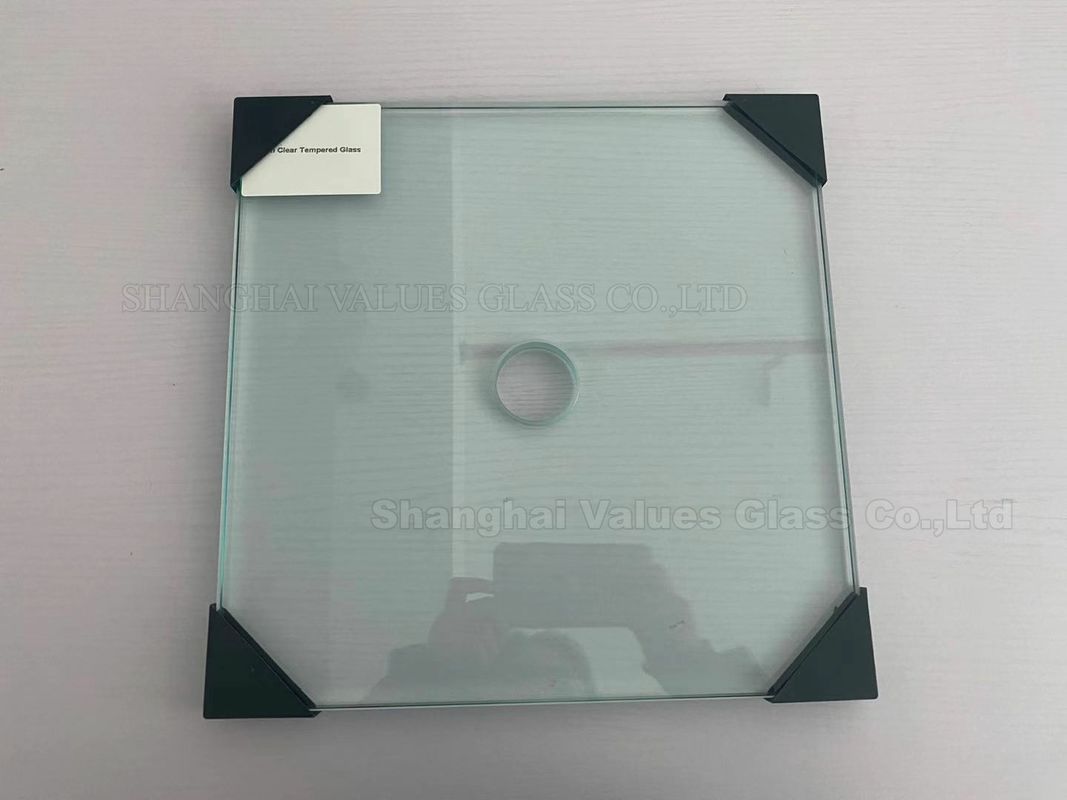

EN12150 19mm Tempered Glass Panels With Hole Cutcout Printing
|Product Name||Tempered Glass Panels||Material||Float Glass|
|Color||Clear, Green, Blue, Grey, Bronze||Process||Clear Glass, Tempered Glass|
|Shape||Curve, Flat||Edge||Safety Edge Or As Your Demand|
|Function||Decorative Glass, Heat Reflective Glass||Thickness||3-19mm|
EN12150 tempered glass panels,
EN12150 tempered glass sheets,
19mm tempered glass wall panels
Customized Tempered Glass Shower Panel with Hole, Cutcout and Printing
About Tempered Glass Panels:
Tempered glass, or toughened glass, has been heat-treated to make it stronger and safer to prevent injury in case if it ever breaks. In fact, tempered glass is four to five times stronger than annealed, or untreated, glass. In the event of breakage, tempered glass fractures into small, relatively harmless pieces rather than jagged shards.
Most of the glass that you see in commercial and residential spaces has been tempered. Common applications include side and rear windows in vehicles, entrance doors, shower and tub enclosures, racquetball courts, patio furniture, microwave ovens, fireplace doors and grates, and skylights.
Advantage of Tempered Glass Panels:
1. Strength improvement: The mechanical strength, impact resistance and bending strength of tempered glass can reach 4 to 5 times that of ordinary glass.
2. Improved thermal stability: Tempered glass can withstand huge temperature differences without being damaged, and its resistance to temperature differences is 3 times that of ordinary float glass of the same thickness.
3. Improved safety: After the toughened glass is damaged by a strong force, tiny obtuse-angle particles will appear quickly, thereby ensuring personal safety to the greatest extent.
Specification of Tempered Glass Panels:
|Product Name||Customized Tempered Glass Shower Panel with Hole, Cutcout and Printing|
|Raw Material||Clear Glass, Ultra Clear (Low Iron) Glass, Tinted Glass|
|Glass Process||Heat treatment or Chemical treatment|
|Glass Color||Clear, Blue, Green, Bronze, Grey and etc|
|Thickness||2.1 mm - 19 mm|
|Max dimension||3660 x 2440 mm|
|Min dimension||20 x 20 mm|
|Glass Shape||Flat or Curved / Bent|
|Fragment (Area 5*5cm)||T<=3mm, Fragment>=30 PCS; 4mm<=T<=12mm, Fragment>=40 PCS|
|Shock resistance||5~7 times of annealed glass|
|Heat resistance||Thermal shock at about 300℃|
|Withstand pressure||3~5 times of annealed glass|
|Holes or cutout||Drawing or sketch is needed|
|Printing||Available per request|
Applications of Tempered Glass Panels:
- Doors and windows
- Frameless shower doors
- Partitions for homes, offices, hotels and other commercial buildings
- Glass Curtain Wall and Facades
- Skylight glass, Glass stairs, and Glass elevators
- Tabletops Glass
- Glass shelves and Cabinets
- Fireplaces Glass
- Other glass decorative panels in interior design
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
