Product Name: | Tempered Glass Panels | Type: | Float Glass |
---|---|---|---|
Process: | Tempering | Thickness: | 3-19mm |
Shape: | Curve, Flat | Edge: | Safety Edge Or As Your Demand |
Feature: | Safety, Durable, High Strength | Usage: | Decorative Glass, Heat Reflective Glass |
Highlight: | Overlength tempered glass panels,Overlength tempered glass fence panels,19mm tempered glass panels for stairs |

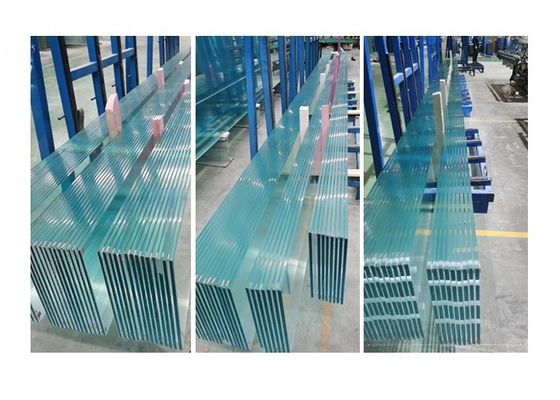

Jumbo Size Tempered Glass Large Size Glass or Overlength Glass Supplier
What is Tempered Glass Panels:
Tempered glass refers to glass that has a compressive stress layer formed on the surface of the glass after the treatment process. Tempered glass is actually a kind of prestressed glass. In order to improve the strength of glass, chemical and physical processes are usually used to form a compressive stress layer on the surface of the glass. When the glass is subjected to external forces, the stress on the surface is first offset, thereby improving the bearing capacity. Enhance the mechanical strength and thermal shock resistance of the glass itself, and has a special fragment state, which will reduce the harmful to human when the tempered glass is broken.
Advantage of Tempered Glass Panels:
1. Strength improvement: The mechanical strength, impact resistance and bending strength of tempered glass can reach 4 to 5 times that of ordinary glass.
2. Improved thermal stability: Tempered glass can withstand huge temperature differences without being damaged, and its resistance to temperature differences is 3 times that of ordinary float glass of the same thickness.
3. Improved safety: After the toughened glass is damaged by a strong force, tiny obtuse-angle particles will appear quickly, thereby ensuring personal safety to the greatest extent.
Specification of Tempered Glass Panels:
Product Name | Jumbo Size Tempered Glass Large Size Glass or Overlength Glass Supplier |
Raw Material | Clear Glass, Ultra Clear (Low Iron) Glass, Tinted Glass |
Glass Process | Heat treatment or Chemical treatment |
Glass Color | Clear, Blue, Green, Bronze, Grey and etc |
Thickness | 2.1 mm - 19 mm |
Max dimension | 3660 x 2440 mm |
Min dimension | 20 x 20 mm |
Glass Shape | Flat or Curved / Bent |
Fragment (Area 5*5cm) | T<=3mm, Fragment>=30 PCS; 4mm<=T<=12mm, Fragment>=40 PCS |
Shock resistance | 5~7 times of annealed glass |
Heat resistance | Thermal shock at about 300℃ |
Withstand pressure | 3~5 times of annealed glass |
Holes or cutout | Drawing or sketch is needed |
Printing | Available per request |
Applications of Tempered Glass Panels:
FAQ:
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
VALUES GLASS, a professional supplier of Glass and Mirror in Shanghai, China, sepcializing in deep processing and fine processing. Since the year of 2005, our business has expanded rapidly all over the world, including United States, Australia, South Korea, Germany and other European countries, and our company has won high reputation from customers with efficient communicate, competitive prices, quality products, on time delivery and best service.
