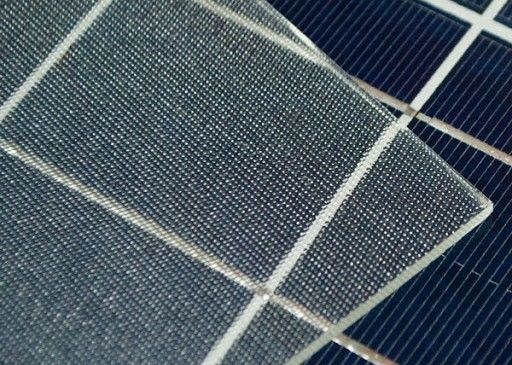

4mm Toughened Solar Anti Reflection Low Iron Tempered Glass Panels
|Product Name||Tempered Glass Panels||Material||Float Glass|
|Technique||Tempering And Coating||Thickness||3-19mm|
|Shape||Curve, Flat||Edge||Safety Edge Or As Your Demand|
|Feature||Safety, Durable, High Strength||Usage||Decorative Glass, Heat Reflective Glass|
4mm AR Tempered Glass Panels,
Toughened low iron glass Sheet,
Toughened low iron glass panel
Anti Reflection Tempered Glass Panels 3mm AR Glass Tempered For Solar Panel
What is Tempered Glass Panels:
Tempered glass also called toughened glass, is processed by ordinary flat glass or float glass. There are two processes for producing toughened glass: one is to process ordinary flat glass or float glass under specific process conditions by quenching or air-cooling quenching. The other is to process ordinary flat glass or float glass through an ion exchange method to change the composition of the glass surface to form a laminated stress layer on the glass surface.
Tempered glass has the characteristics of high impact strength (4 to 5 times higher than ordinary flat glass), high bending strength (5 times higher than ordinary flat glass), good thermal stability, smoothness, transparency, and cutability. When it is damaged by a super impact, the fragments are in the form of scattered fine particles without sharp edges and corners, so it is also called safety glass.
Specification of Tempered Glass Panels:
|Product Name||Anti Reflection Tempered Glass Panels 3mm AR Glass Tempered For Solar Panel|
|Raw Material||Clear Glass, Ultra Clear (Low Iron) Glass, Tinted Glass|
|Glass Process||Heat treatment or Chemical treatment|
|Glass Color||Clear, Blue, Green, Bronze, Grey and etc|
|Thickness||2.1 mm - 19 mm|
|Max dimension||3660 x 2440 mm|
|Min dimension||20 x 20 mm|
|Glass Shape||Flat or Curved / Bent|
|Fragment (Area 5*5cm)||T<=3mm, Fragment>=30 PCS; 4mm<=T<=12mm, Fragment>=40 PCS|
|Shock resistance||5~7 times of annealed glass|
|Heat resistance||Thermal shock at about 300℃|
|Withstand pressure||3~5 times of annealed glass|
|Holes or cutout||Drawing or sketch is needed|
|Printing||Available per request|
Applications of Tempered Glass Panels:
1. Kitchen Appliance Glass:
Tempered glass is used in stoves, ovens, and other kitchen appliances that need heat resistance glass.
2. Construction Glass
Tempered glass is used in construction of house: shower door glass, window glass, bathtub enclosure glass, sliding door glass, skylights glass, glass facades, elevator glass, swimming pool glass fence, and glass balcony doors.
3. Office Partition Glass:
The office room partitions are made of tempered glass, so that it will not cause injury when an employee bumps into and accidentally break them.
4. Railing Glass
The glass railings in offices, department stores, commercial and public spaces are made of tempered glass for safety.
5. Countertop and Tabletop Glass
With the characteristic of heat resistance and scratches resistance, tempered glass is often used to make conference tables, kitchen countertops, reception desks, coffee tables, and other types of furniture.
6. Solar Panel Glass
The thermal strength, heat resistance, and durability of tempered glass make it the ideal material for solar panels glass cover.
Advantage of Tempered Glass Panels:
- Tempered glass is much more stronger than ordinary glass. It can stand up to strong winds, direct impact from blows and bumps, and minor explosions.
- Tempered glass has property of high temperature resistant, which makes tempered glass ideal for use in kitchen appliances and in areas like the bathroom, where it will likely be in contact with the heat on a regular basis.
- Tempering process makes tempered glass super tough, it doesn’t affect the clarity of the glass. Tempered glass is crystal clear and transparent, which makes it useful in windows, display cases, and glass doors.
- Tempered glass can be used practically anywhere glass is needed. It makes for an attractive and sturdy frameless shower door, a fully transparent screen protector, and a seamless stovetop base.
- The manufacturing process that makes tempered glass thermally tough also makes it scratch-resistant. This makes tempered glass an ideal material for glass doors, kitchen appliances, mobile screen protectors, and windows.
- Tempered glass can be clear, frosted, engraved, stained, and patterned. It’s available in an array of patterns and designs to suit your needs.
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
