PVB 3mm Metallic Coating one way solar Reflective Glass

Place of Origin China
Brand Name VALUES GLASS
Certification Per Request
Model Number Reflective Laminated Glass Sheets
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Reflective Laminated Glass Sheets Glass Thickness 3mm ~ 19mm
Glass Type Double Glazing Or Triple Glazing Film Type PVB, EVA, SGP
Film Color Clear, Milky, Grey, Black, Red, Blue, Green Etc Film Thickness 0.38, 0.76, 1.14, 1.52mm
Usage Curtain Wall, Skylights,Windows Feature Soundproof, Heat Resistant
High Light

PVB reflective glass for windows

,

PVB one way Reflective Glass

,

3mm solar reflective glass

Leave a Message
Product Description

Reflective Coated Laminated Glass Sheets for Curtain Wall Coating Glass



What is Laminated Glass Sheets:



Laminated glass is made from two or more pieces of glass with a thin PVB / SGP / EVA film between each glass and processed with high temperature and high pressure. It can be made from high grade float glass, plated glass, tempered glass and curved glass. It would not crash into fragments when broken, since they are felt by the film. It would reduce the harm to people by the glass piece when the glass was broken, since it's not easily penetrated.



What is Reflective Glass:

Reflective glass has a metallic coating to help reflect heat, which in turn lowers energy costs for the building, as it takes less energy to regulate the building’s interior temperature. Reflective glass can give the appearance of a one-way mirror, providing added privacy for building occupants. Reflective glass uses consist of forming building facades and interior design pieces.

The metal coating on reflective glass can be added to the hot glass during the float process. This kind of coating is called a hard coat and reflective glass with a hard coat can be cut, heat strengthened or toughened (tempered). The other way of adding a metal coating to glass is by adding it via a vacuum after the glass has been finished. This is called a soft coat. A soft coat is more susceptible to scratches and other damage, so is usually applied to the inside surface of a glass pane as part of a double-glazed system.



Parameters of Laminated Glass Sheets:

Product Name

Reflective Coated Laminated Glass Sheets for Curtain Wall Coating Glass

Raw Material Glass Clear Glass, Ultra Clear Glass, Bronze Glass, Grey Glass, Blue Glass, Green Glass
Thickness 3, 4, 5, 6, 8, 10, 15, 19mm
Thickness tolerance

T=2~6mm: ±0.2mm

T=8~19mm: ±0.3mm

Max dimension 6,000 * 3,000mm
Holes or cutout Drawing or Sketch Needed
Lamination

Can be two glasses, three glasses or four glasses laminated



Laminated Glass Sheets​ Feature:

1. Safety: The laminated glass installed in the building can still keep intact in the original frame after being suffered any external shocks, even if glasses are broken. Personnel inside and outside the building will not be hurt by flying shards of glass;

2. Anti hurricane and earthquake: it cannot fall to ground and can remain in situ even if glasses are broken.

3. Blast and ballistic protection: multi-layer laminated glass can be used to create multiple levels of bullet-proof glasses;

4. UV protection: have great barrier effect for sunlight's ultraviolet rays; UV Rejection is up to 99%; can avoid ultraviolet radiation;

5. Sound Control: PVB film has insulation and absorption effects for sound wave, so that it can reduce noise.

6. Color diversity:Designed into all sorts of products to meet customers requirements;

7. Sun-blocking:Effectively reducing the heat transmission and energy consumption.



Application of Reflective Laminated Glass Sheets​:

1. Windows: In residential and commercial structures, around 90% of the heat enters through windows. To counter this, reflective glass windows are installed for their effective solar-control properties.

2. Curtain walls and Facades: Building Curtain Wall with reflective laminated glass can minimises heat ingress and solar glare to lower reliance on AC units, keeping the indoors cooler throughout the day.

3. Skylights: to reduce overheating and solar glare, skylights made of reflective glass windows work supremely well. Their solar control properties are extremely beneficial in absorbing the majority of UV rays falling on it, lowering heat gain in the process.

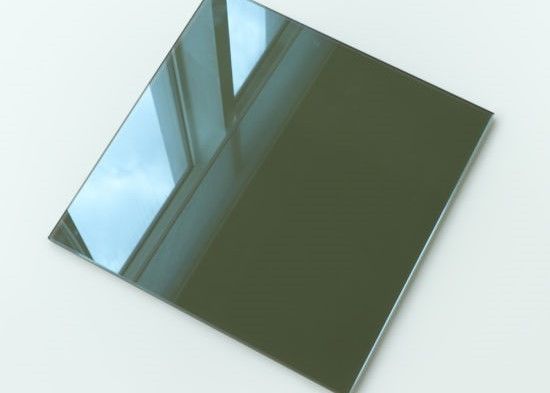

PVB 3mm Metallic Coating  one way solar Reflective Glass 0

PVB 3mm Metallic Coating  one way solar Reflective Glass 1



Other Type of Laminated Glass:

  • Laminated Toughened Glass
  • Dichroic Laminated Glass
  • Decorative Laminated Glass
  • Tinted Laminated Glass
  • Low-E Laminated Glass
  • Insulated Laminated Glass
  • Acoustic Laminated Glass
  • Ultra White Laminated Glass



Packaging & Delivery:

  • Standard export package: Plywood or wooden crate
  • Corner protector and protective film is available
  • Crates shall be banded by steel bands



FAQ:

Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.

Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.

Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;

-- If urgent case, we will call customers to immediately discuss and solve.
