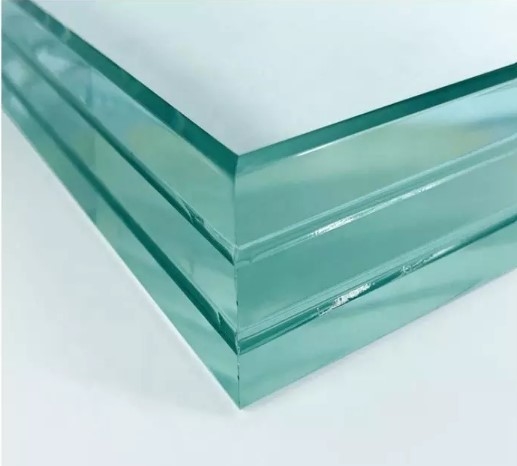

3 Layer Tempered Laminated Glass Sheets For Building Thickness 48.04mm
| Place of Origin | China |
|---|---|
| Brand Name | VALUES GLASS |
| Certification | Per Request |
| Model Number | Laminated Glass |
| Minimum Order Quantity | 5 pieces |
| Price | Negotiable |
| Packaging Details | Plywood Pallet or per request |
| Delivery Time | 14 days |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 10,000 sq.meter/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Glass Color | Clear, Ultra Clear, Bronze, Grey, Blue, Green Etc | Glass Thickness | 3mm-25mm(1/8 Inch To 1 Inch) |
|---|---|---|---|
| Glass Type | Tempered | Film Type | PVB, EVA, SGP |
| Film Color | Clear, Milky, Grey, Black, Red, Blue, Green Etc | Film Thickness | 0.38, 0.76, 1.14, 1.52mm |
| Highlight | Tempered Laminated Glass Sheets For Building,48.04 mm Tempered Laminated Glass Sheets,3 Layer Tempered Laminated Glass Sheets |
||
Product Description
Thickness 48.04mm 3 layer tempered laminated glass for building
What is Laminated Glass:
Laminated glass is a type of safety glass that is made of two or more panes of annealed glass joined together by a layer of PVB or SGP. You can think of this joining as creating a glass sandwich (glass, plastic, glass). Some types of laminated glass are made with multiple layers (think of these as a laminated glass layer cake).
Roperties Of Laminated Glass:
1.Safety The middle layer film can maintain the adhesion between the glass layers even when it is broke, and its high strength can prevent the glass from breaking into splashing sharp pieces. Thus, laminated glass can reduce damage and ensure personal safety.
2.Anti-invasion The laminated glass has earthquake resistance and impacts resistance ability. It can resist the continuous attacks of weapons such as hammers and choppers. Moreover, it can withstand the penetration of bullets within a certain time.
3.Anti-noise The acoustic PVB, EVA, and TPU interlayer films can block sound waves, isolating 1000Hz-2000Hz coincident noise that can penetrate ordinary glass. As a result, it can provide a quiet and comfortable space.
4.Block UV The interlayer films can block nearly all ultraviolet radiation. For example, A thermoset EVA film can block up to 99.9% of all UV rays. As a result, it protects people’s skin health and prevents the fading of furniture display items caused by sunlight. It can also reduce the transmission of sunlight and reduce cooling energy consumption.
Laminated glass features:
- The plastic portion of laminated glass may be clear or tinted.
- Laminated glass aids in the screening of UV radiation.
- Laminated glass is beneficial for soundproofing
| Product Name | Laminated Glass |
| Thickness | 3mm-25mm(1/8 inch to 1 inch), we offer bespoke service. |
| Max Size | Max size:4600*9000 or 3300*22000mm(180*354 inch or 130*866inch),we offer bespoke service. |
| Glass Color | Clear,ultra clear,Tinted(Euro gray, Ford blue ,Dark blue,French Green,Bronze, ,etc) |
| Laminated interLayer | 2 layers, 4 layers, 6 layers |
| InterLayer thickness | 0.38mm,0.76mm,1.14mm,1.52mm,etc |
| Interlayer Options | PVB,EVA,SGP |
| Available Configurations | Laminated Safty Glass, Multilaminated Glass |
| Layer color | Clear, stained |
| Optional processing | Edging,polishing,driling holes,side opening, cut to size |
| Deep processing | Coating,Printing,Laminating,Insulating,tempering |
| shapes | Flat or Curved |
| Manufacturing standard | CE,BS,SGCC,SAI,CCC,ISO |
| Applications | Laminated glass is composed of two or more plies joined by an interlayer, which prevents the glass from shattering if it breaks. It's widely used in building construction and residential structures, often used in curtain wall, balustrades&handrails, ceiling,railing,balcony fence, skylight windows, glass table and anywhere you need, there are many possibilities. |
Edges&Corners
Our Projects:
Packing ＆ shipping
FAQ
1. who are we?
We are based in Shanghai, China, start from 2014,sell to North America(40.00%),Eastern Europe(15.00%),Western Europe(10.00%),South America(5.00%),Oceania(5.00%),Southern Europe(5.00%),Central America(5.00%),Mid East(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),South Asia(2.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tempered Glass
4. why should you buy from us not from other suppliers?
VALUES GLASS, aim to deliver ADDED VALUE for partners by: -- Competitive price! -- Quality products! -- On time delivery! -- Efficient communication! -- Expertise service! VALUES GLASS, will be a reliable partner for you, for WIN - WIN together!
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CPT,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Italian
