22mm Ultra Clear 3+3mm 22A LED Laminated Glass Screen

Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number LED Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name LED Glass Technique Lamination
Material Clear Glass, Ultra Clear Glass Thickness 3mm+3mm ~ 19mm+19mm
Max Size 1300 X 3600mm Light Color Cold White, Warm White, Yellow, Red, Green, Blue
Application Currain Wall, Facade, Decorative Light, Shopping Mall Power Supply 100-240VAC
High Light

22A LED Laminated Glass

,

22mm LED Laminated Glass

,

22A LED Glass Screen

Leave a Message
Product Description

Decorative Laminated LED Glass Screen for Advertisement LED Display Screen



Specification of LED Glass:

Product name LED Glass
Raw material Float glass, Extra clear glass, Tempered glass, Bent glass, Printing glass, Tinted glass.
LED light color Cold White, Warm White, Yellow, Red, Green, Blue
Thickness 8.7mm ( 3mm+3mm ) to 40.7mm ( 19mm+19mm );
Max Size 1300 x 3600mm
Shape Flat, Curved
Input Voltage 100V - 240V
Operation Temperature -20℃ to 80℃ (or -4℉ to 186℉);
Output Voltage 3, 6, 9, 12, 24V, 48V ( Based on the design of LED )
Power Wattage 15W ( Overload, Current, Voltage Protect )
Response Time <=100ms
Light Transmittance >=80%
Viewing Angle About 160°
Isolation of UV >=99%
Isolation of IR About 40%
Lifetime of LED >=50,000 hours
Accessories Power Supply ( 100-240VAC )



Description of LED Glass:

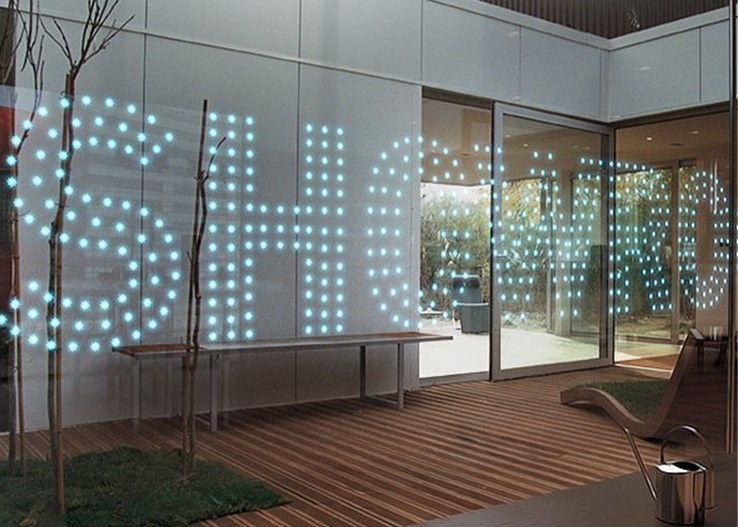

LED glass is a kind of decorative laminated glass with LED (Light Emitting Diodes) imbedded in the PVB interlayer of the glass panels. This technology will arouse the imagination of architects and interior designers to create innovative distinctive patterns to suit whatever application possible. The LED produces a vibrant illumination that will enhance the effect of the display to capture interests and awareness. It would be useful in facades, showrooms, shelf displays, mall counters, skylights, shop windows, clinics, boutiques and more…

Nearly any number and distance of LED is possible. With a connecting cable energy is being inducted via contacting stripes along both long glass edges. Power supply happens via an external unit.



Advantage of LED Glass:

1. Safe, insulative, environmental, energy-saving, UV protection, infrared protection.

2. An excellent promotional tool for attractive displays

3. Can be processed to flat or curved shapes, holes are available

4. Excellent aesthetic performance: twinkling and slowly changing effects can be controlled by intellectualized signal control system.

5. High impact-resistance, good shock-resistance and safety same as laminated glass.

6. Different glass sheet and variety of LED patterns to meet your unique design requirement.



Application of LED Glass:

Glass curtain wall Luxury shop decoration
Building ceiling glass Sunroom glass
Home decoration glass Advertisement board glass
Outdoor decoration glass Furniture glass
Elevator guardrail glass Dance floor
Shop window glass

Staircase



OTHER PRODUCTS:

-- Tempered glass, heat strengthened glass, heat soaked glass;
-- Smart glass ( or privacy glass, switchable glass ), self-adhesive PDLC film;
-- LOW E glass, laminated glass, insulated glass, vacuum glass;
-- Anti-reflection glass, Anti Glare Glass;
-- Decorative Glass;
-- Silver mirror, copper free mirror, LED mirror
22mm Ultra Clear 3+3mm 22A LED Laminated Glass Screen 0


Packaging & Delivery:

Standard export package: Plywood or wooden crate

Corner protector and protective film is available

Crates shall be banded by steel bands
