13.14mm High Tech Laminated LED Glass Panel Intellectualized Fireproof

Place of Origin China
Certification Upon Request
Model Number LED Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month
Product Details
Product Name LED Glass Material Clear Glass, Ultra Clear Glass
Technique Lamination, LED Light Color Cold White, Warm White, Yellow, Red, Green, Blue
Max Size 1300 X 3600mm Thickness 3mm+3mm ~ 19mm+19mm
Power Supply 100-240VAC Application Outdoor Shop Window, Advertisement Glass Panel
High Light

Intellectualized LED Glass Panel


Intellectualized LED Laminated Glass


Fireproof LED Glass Panel

Leave a Message
Product Description

Ultra Clear Laminated LED Glass Panel For Indoor LED Decorative Glass


Description of LED Glass:

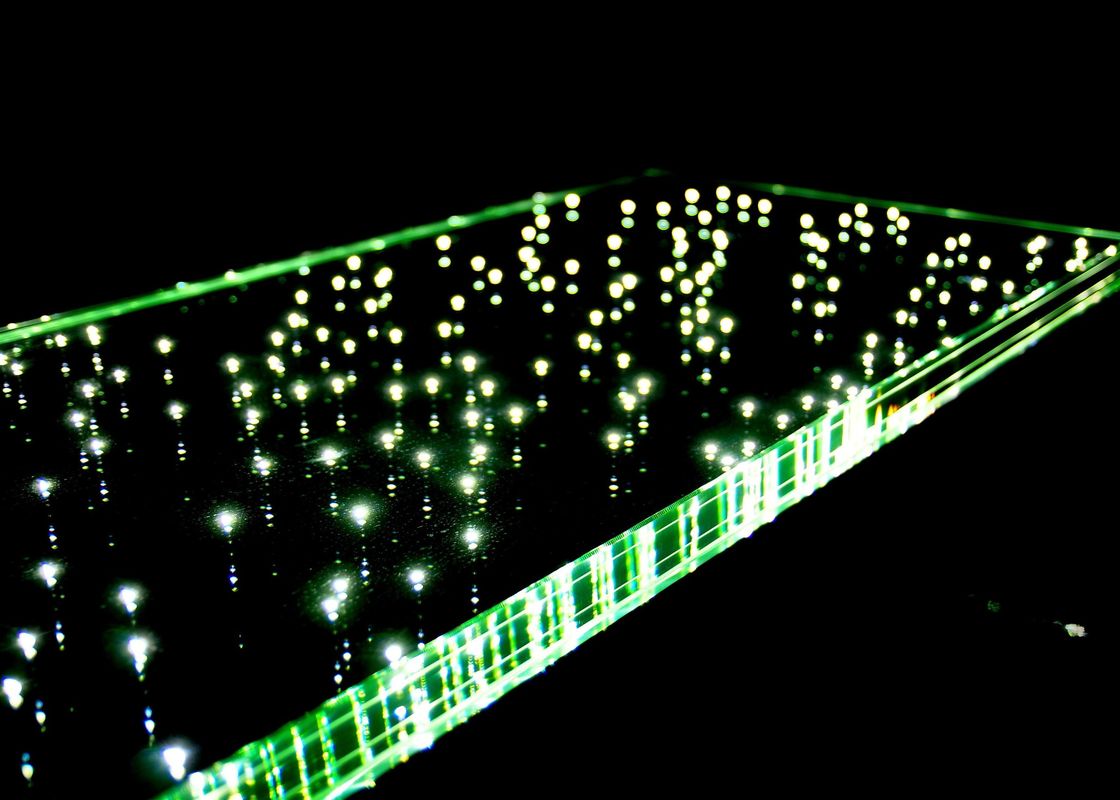

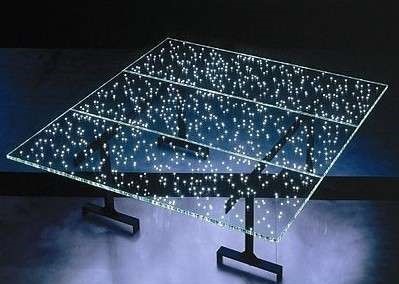

LED glass is one kind of high technical laminated glass, in which LED lights are embedded and form different kinds of patterns or designs.  Different types of LED glass can be produced with different glass sheet (common float glass / Ultra white glass / tempered glass / semi-tempered glass / coating glass / insulated glass / fireproof glass, etc.) and different intellectualized LED design, which can meet your unique functional and decorative design requirements. Twinkling and slowly changing effects can be controlled by intellectualized signal control system.


Specification of LED Glass:

Product name LED Glass / LED Laminated Glass
Raw material Float glass, Extra clear glass, Tempered glass, Bent glass, Printing glass, Tinted glass.
LED light color Cold White, Warm White, Yellow, Red, Green, Blue
Thickness 8.7mm ( 3mm+3mm ) to 40.7mm ( 19mm+19mm );
Max Size 1300 x 3600mm
Shape Flat, Curved
Input Voltage 100V - 240V
Operation Temperature -20℃ to 80℃ (or -4℉ to 186℉);
Output Voltage 3, 6, 9, 12, 24V, 48V ( Based on the design of LED )
Power Wattage 15W ( Overload, Current, Voltage Protect )
Response Time <=100ms
Light Transmittance >=80%
Viewing Angle About 160°
Isolation of UV >=99%
Isolation of IR About 40%
Lifetime of LED >=50,000 hours

Power Supply ( 100-240VAC )


Application of LED Glass:

LED Curtain Wall Luxury Shop Decoration
Building Ceiling Glass Sunroom Glass
Indoor Decorative Glass Advertisement Board Glass
Furniture Glass Outdoor Decoration Glass
Elevator Guardrail Glass Dance Floor
Shop Window Glass

Staircase Glass


Advantage of LED Glass:

1. Safe, insulative, environmental, energy-saving, UV protection, infrared protection

2. Excellent aesthetic performance: twinkling and slowly changing effects can be controlled by intellectualized signal control system

3. High impact-resistance, good shock-resistance and safety same as laminated glass

4. Different glass sheet and variety of LED patterns to meet your unique design requirement

5. An excellent promotional tool for attractive displays

6. Can be processed to flat or curved shapes, holes are available



-- Tempered glass, heat strengthened glass, heat soaked glass;
-- Smart glass ( or privacy glass, switchable glass ), self-adhesive PDLC film;
-- LOW E glass, laminated glass, insulated glass, vacuum glass;
-- Anti-reflection glass, Anti Glare Glass;
-- Decorative Glass;
-- Silver mirror, copper free mirror, LED mirror


Packaging & Delivery:

Standard export package: Plywood or wooden crate

Corner protector and protective film is available

Crates shall be banded by steel bands


13.14mm High Tech Laminated LED Glass Panel Intellectualized Fireproof 0



Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.

Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.

Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.

Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.

Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.

Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;

-- If urgent case, we will call customers to immediately discuss and solve.
