Privacy Protection PDLC Switchable Smart Glass 6+6mm With Low Power Consumption

  • Privacy Protection PDLC Switchable Smart Glass 6+6mm With Low Power Consumption
Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number Smart Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Glass Clear Glass, Ultra Clear Glass Thickness 5+5mm / 6+6mm
Width Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film) Film Application To Be Laminated / Self-adhesive Film
Film Color Clear, Milky, Grey, Blue, Green, Red Light Transmittance >=86% (ON) / <=10% (OFF)
High Light

switchable privacy glass

,

pdlc switchable glass
Leave a Message
Product Description

Privacy Protection PDLC Switchable Glass 6+6mm With Low Power Consumption





Product Description:

Smart glass also called magic glass, privacy glass, smart film glass, intelligent switchable glass.



It is a kind of glass that switchble film embedded firmly between two pieces glasses based on existing dry-laminated process.



Product Name

Privacy Protection PDLC Switchable Glass 6+6mm With Low Power Consumption
Raw Material Glass Clear Glass, Ultra Clear Glass
Thickness  5+5mm / 6+6mm
Color Clear, Milky, Grey, Blue, Green, Red, Black
Common Width

Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters)

Self-Adhesive -- 1.0, 1.2, 1.5meters (Max 1.5meters)
PDLC Film Length 30meters/roll or per request
Light Transmittance

Clear Glass: >= 82% (ON) / <=8% (OFF)

Ultra Clear Glass: >= 86% (ON) / <=10% (OFF)
Response Time

From OFF to ON: <=50ms

From ON to OFF: <=200ms
Power consumption 5W/sq.meter
Operating Temperature -20 ℃ and 70 ℃
Life Time >=50,000hours
Transformer AC 60V (Suggest to use nominated transformer)
Silicon Glue Neutral (Suggest to use nominated silicon glue to prevent glass corrison)





Application:

-- Privacy / security glass in hotels;

-- Glass walls / partitions in meeting rooms;

-- Vision panels / doors in offices;

-- Automobile side window;

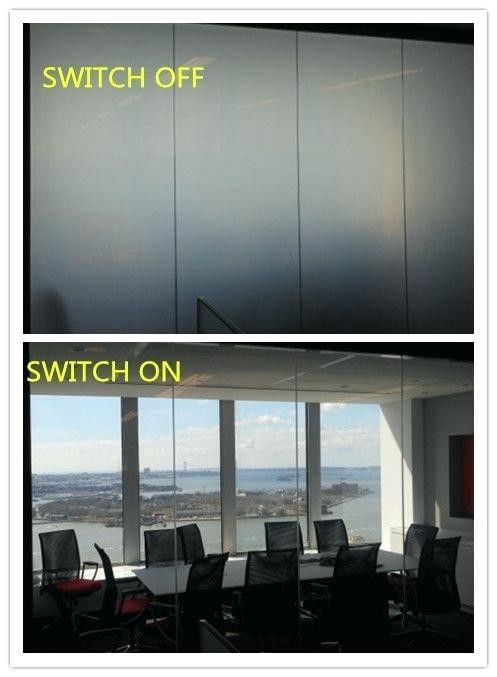

Privacy Protection PDLC Switchable Smart Glass 6+6mm With Low Power Consumption 0Privacy Protection PDLC Switchable Smart Glass 6+6mm With Low Power Consumption 1
