8mm/10mm/12mm Thick Tempered Safety Glass Door with Grooves / Holes

Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number Tempered Glass
Minimum Order Quantity 5 pieces
Price Negotibale
Packaging Details Export wooden crates
Supply Ability 19000 Square Meter/Square Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Other Name Safety Tempered Glass Function Decorative Glass
Quality High Quality Color Clear
Thickness 3-19 Mm Structure Solid
High Light

tempered glass sheets

,

tempered glass home windows

Leave a Message
Product Description

8mm/10mm/12mm Thick Tempered Safety Glass Door with Grooves/Holes

Products description:

Tempered glass is made by forming compressive stress on the surface of the glass and heating the glass up to its intenerating temperature and then make the glass uniform cooling quickly. During the process of cooling, the exterior part of the glass is solidified because of the rapid cooling, while the interior part of the glass shrinks because of slow cooling, then forming compressive stress on the surface of the glass and tensile stress inside the glass, thus improving the intensity and heat stability of the glass. Tempered glass can be with holes or cutouts/hinges/grooves/notch and processed into tempered laminated glass, tempered insulated glass, etc.

Specification:


Production specification:
Flat Tempered Glass (Thickness: 3-25mm):
Max size: 3300mm*6500mm; 1700*12000mm
Min. Size: 300mm*200mm
Curved Tempered Glass (Thickness: 5-25mm):
Min curved radius: 450mm Max. Size (Arc length*H): 3500*3000mm
Min. Size: 300mm*500mm
Colour: Clear, Low iron, Grey, French Green, Ford Blue, Grey or Gold Bronze and etc.
Quality certificate: CCC (China Compulsory Certification);
GB/T9963-1998<Tempered glass> standard
GB/17841-1999<Tempered glass & heat strengthened glass> standard
UK-BS6206;
Note: Creation Glass can customize according to the given specifications and colors from our clients.

Features:

1. tempered glass is 4-5 times stronger than annealed glass of the same thickness.

2. In case of breakage, tempered glass breaks up into small, cubical fragments, which are no harm to human bodies.

3. Any cutting or grinding must be done prior to tempering. Cutting, grinding, and sharp impacts after tempering will cause the glass to fracture.

4. Ideal for areas with high wind loads and places where human contacts is an important consideration.

5. tempered glass is fully tempered as per CCC , EN12150.



Application:

1. Places where safety glass is required by laws and regulations

2. Windows or other areas in a building
3. Glass balustrade and escalator side panels
4. Windows of motor vehicles, boats and ships
5. Glass table tops and shelves, interior decorations and furniture, places exposed to thermal impact

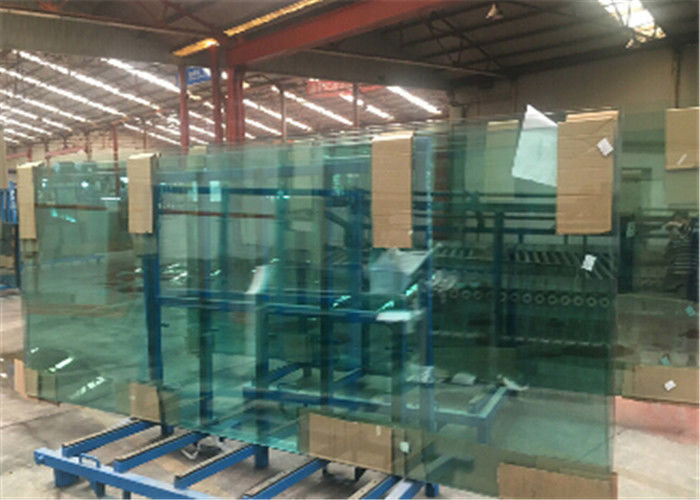

Products pictures:









Packaging&Shipping:
