PDLC Non Adhesive Opaque Smart Privacy Switchable Frosted Glass

Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number Smart Glass
Minimum Order Quantity 5 pieces
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Glass Clear Glass, Ultra Clear Glass Thickness 5+5mm / 6+6mm
Width Max 1,800 (Smart Glass) / 1,500mm (Self-Adhesive Film) Film Application To Be Laminated / Self-adhesive Film
Film Color Clear, Milky, Grey, Blue, Green, Red Light Transmittance >=86% (ON) / <=10% (OFF)
High Light

PDLC switchable frosted glass

,

PDLC smart privacy film

,

Non Adhesive smart privacy film

Leave a Message
Product Description

PDLC Non-Adhesive Privacy Glass for Electric Opaque Glass Sliding Door





Product Specification:





Product Name

Privacy Protection PDLC Switchable Glass 6+6mm With Low Power Consumption

Raw Material Clear Glass, Ultra Clear Glass
Thickness  5+5mm / 6+6mm
Color Clear, Milky, Grey, Blue, Green, Red, Black
Common Width

Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters)

Self-Adhesive -- 1.0, 1.2, 1.5meters (Max 1.5meters)

PDLC Film Length 30meters/roll or per request
Light Transmittance

Clear Glass: >= 82% (ON) / <=8% (OFF)

Ultra Clear Glass: >= 86% (ON) / <=10% (OFF)

Response Time

From OFF to ON: <=50ms; From ON to OFF: <=200ms

Power consumption 5W/sq.meter
Operating Temperature -20 ℃ and 70 ℃
Life Time >=50,000hours
Transformer AC 60V (Suggest to use nominated transformer)
Silicon Glue Neutral (Suggest to use nominated silicon glue to prevent glass corrison)




FAQ:



Does Smart Film blocks harmful UV rays?
---Yes, It blocks over 99% of the harmful UV rays in both its energized and un-energized state.


Is Smart Film energy efficient?
---Yes, It is considered a green product that consumes between 3 and 6 watts per meter squared.


What is the difference between Self-Adhesive Smart Film and Non-Adhesive Smart Film?

---Smart Film Glass offers a Self Adhesive and a Non-Adhesive. The only difference between the two switchable films is that Self Adhesive has a peel and stick backing and or non-adhesive can be installed with a double sided adhesive clear tape.



Can Smart Film be installed on the half of the glass only?
---Yes, you can install our Smart Film privacy film on the top half or bottom half only if desired.

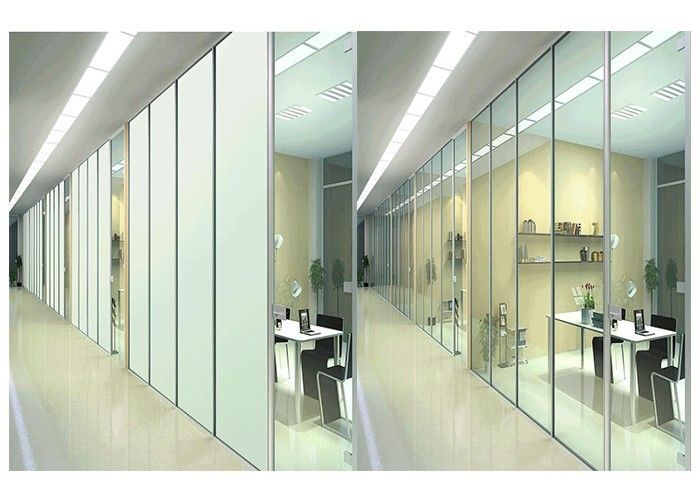

Application:



-- Privacy / security glass in hotels;

-- Glass walls / partitions in meeting rooms;

-- Vision panels / doors in offices;

-- Automobile side window;



PDLC Non Adhesive Opaque  Smart Privacy  Switchable Frosted Glass 0
