Induction Cooker Cooktop Ceramic Glass Plate Sheet Heat Resistant

Product Details

Place of Origin: China

Brand Name: VALUES GLASS

Certification: Upon Request

Model Number: Glass Ceramic

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Price: Negotiable

Packaging Details: Plywood Pallet or per request

Delivery Time: 14 Days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 8,000 sq.meter/Month

Get Best Price
Contact Now
Specifications
Highlight:

Cooktop Ceramic Glass Sheet

,

Heat Resistant Ceramic Glass Plate 6mm

,

Induction Cooker Ceramic Glass Panels

Color:
Transparent, Black, White
Thickness:
3.9±0.3mmmm
Heat Resistance:
800℃
Application:
Cooker Panel, Stove, Fireplace
Size:
Custom Made Size
Shape:
Rectangle, Square, Oval Or Other Shape Available
Color:
Transparent, Black, White
Thickness:
3.9±0.3mmmm
Heat Resistance:
800℃
Application:
Cooker Panel, Stove, Fireplace
Size:
Custom Made Size
Shape:
Rectangle, Square, Oval Or Other Shape Available
Description

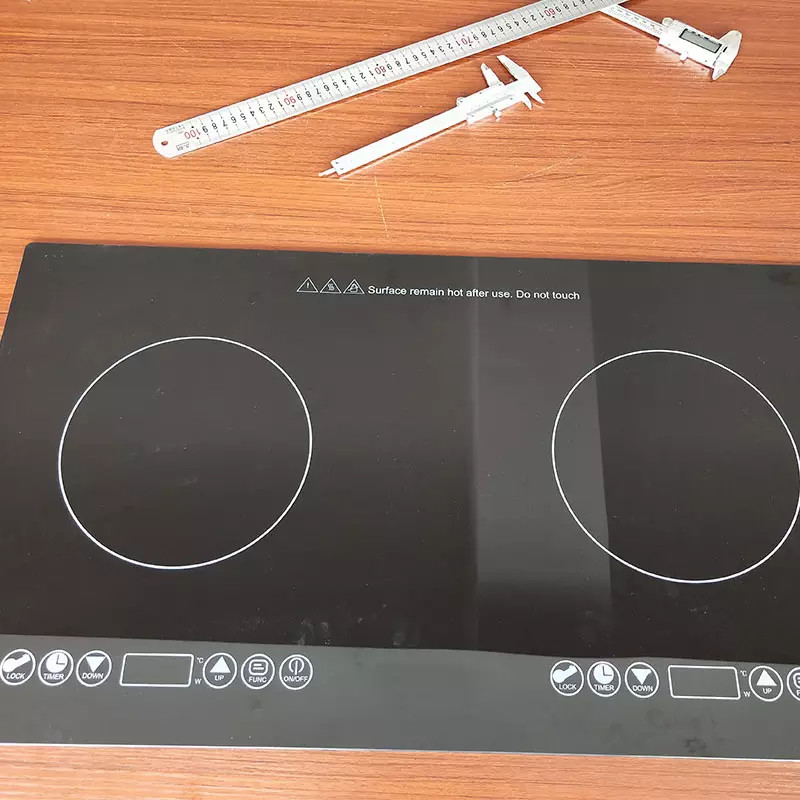

Induction Cooker Cooktop Ceramic Glass Plate Sheet Heat Resistant

Heat Resistant Induction Cooker Ceramic Glass Plate Cooktop Ceramic Glass Sheet

Induction Cooker Cooktop Ceramic Glass Plate Sheet Heat Resistant 0

Ceramic glass is a crystalline material produced through controlled crystallization of base glass and has the fabrication advantage of glass as well special properties of ceramics.
It is an extremely heat resistant glass.It is a mechanically strong material and can sustain repeated and quick temperature changes up to 660-850 degree centigrade.It is widely used for fireplace,micro oven screen,induction cooker.

Specification

Thickness 4mm,6mm Heat resistant temperature 660≤850℃
Silica content >80% Density(20℃) 2.23cm-1
Stain point 520℃ Thermal capacity:(20-100℃) 0.82KJ*(kg*k)-1
Annealing temperature 560℃ Thermal conductivity 1.2W*(M*K)-1
Soften point 820℃ Thermal shock resistance 180K
Refractive index 1.47 Max.working temperature 750℃(long time)
Color Black, White, Transparent Refractive index 1.47384
Processed point(104dpas 1220℃ Thermal expansion coefficient(0-300℃) 3.3±0.1*10-6K-1



Appplication


1.Vision panels for room heaters, glass heaters, glass heating tabletops, heat preservation board/panels;
2.Cover panels for heating radiators, drying stand, towel heaters;
3.Cover panels for reflectors and high performance floodlights
4.Cover panels in IR drying appliances
5.Cover panels for beamers
6.UV blocking shields
7.Cover panels for kebab grill radiators, electric heating fish bowl
8.Safety protection (bullet proof glass)



Induction Cooker Cooktop Ceramic Glass Plate Sheet Heat Resistant 1
