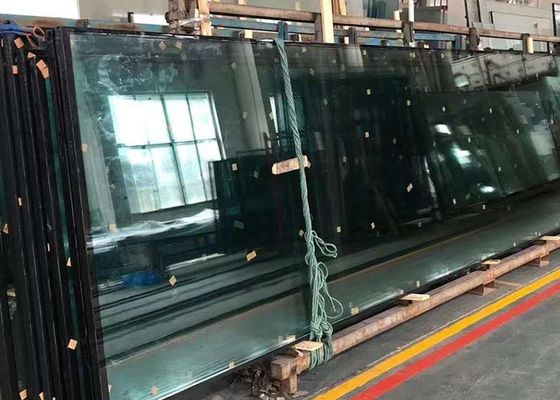

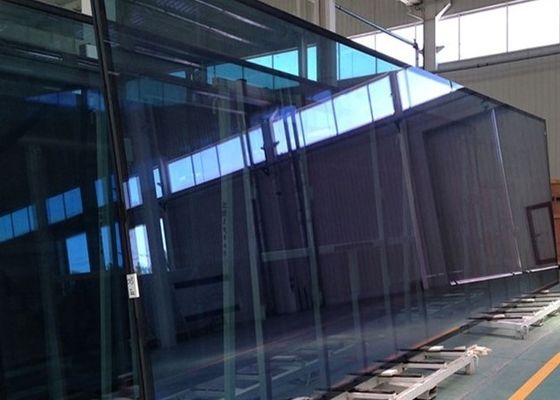

Reflective Coated Toughened IGU Insulated Glass Unit airtight
|Product Name||Insulated Panels||Material||Clear Glass|
|Color||Clear, Green, Blue, Grey, Bronze||Glass Thickness||3-19mm|
|Edge||Sealant Sealed||Application||Windows; Glass|
Toughened IGU glass panels,
Toughened igu insulated glass unit,
Blue igu insulated glass unit
Reflective Coated Insulation Glass Toughened IGU Insulated Glass Unit
What is Insulated Glass Panels
Insulating glass is a new type of building material that has good heat insulation, sound insulation, beauty and application, and can reduce the weight of the building. It uses two (or three) glass and a high-strength and high-airtight composite adhesive. The glass sheet is bonded to an aluminum alloy frame containing a desiccant to produce high-efficiency sound insulation and heat insulation glass. Insulating glass has many properties superior to ordinary double-layer glass, so it has been recognized by countries all over the world. Insulating glass is to effectively support two or more pieces of glass to be evenly separated and bonded and sealed around the glass to form a dry gas between the glass layers.
Specification of Insulated Glass Panels:
|Product||Tinted Blue Insulated Glass Air Spacer Double Glazing Insulated Reflective Glass|
|Glass Thickness||3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 15mm, 19mm|
|Color||Blue, Green, Brown, Grey, tea color, etc.|
|Advantages||1) Heat isolation and warmth preservation|
|2) Distinct energy-saving effect, decreasing air-conditioning and heating costs|
|3) Good soundproofing performance makes rooms comfortable|
|4) Good anti-frosting and dew-formation properties|
|5) IR reflected|
|Standard insulated glass thickness (Glass+Aluminum spacer+Glass) / mm|
|Item||Glass thick||Product parameter (mm)|
|Double/triple wall insulated glass||4mm||4+4A+4||4+5A+4||4+6A+4|
|Aluminum spacer thickness||4mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm|
|11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, etc|
For other thickness, produce according to customer's requirements
Applications of Insulated Glass Panels:
- Commercial and Residential Doors and windows
- Partitions for homes, offices, hotels and other commercial buildings
- Glass Curtain Wall and Facades
- Skylight glass
- Refrigerator Door
Advantage of Insulated Glass Panels:
(1) Sound insulation and noise reduction: Double-layer windows can reduce a lot of noise than single-layer windows, giving residents a quiet living environment.
(2) Light weight: Under the same heat insulation effect, replacing part of the brick wall or concrete wall with hollow glass can reduce the building load, simplify the building structure, increase the lighting area, and enhance the indoor comfort.
(3) Energy saving: This is the biggest reason why double-layer windows are selected by users, because its structure determines that its heat transfer coefficient is only one-quarter to half of single-layer windows, which can reduce heat loss by nearly 70%, so it can control the indoor temperature better, and at the same time, it can achieve the effect of warm in winter and cool in summer. It is an ideal energy-saving building material
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
VALUES GLASS, a professional supplier of Glass and Mirror in Shanghai, China, sepcializing in deep processing and fine processing. Since the year of 2005, our business has expanded rapidly all over the world, including United States, Australia, South Korea, Germany and other European countries, and our company has won high reputation from customers with efficient communicate, competitive prices, quality products, on time delivery and best service.
