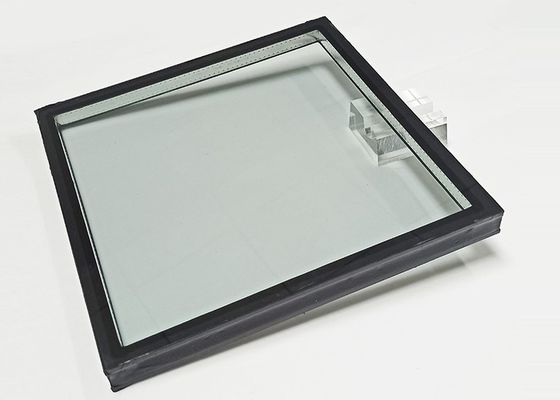

5+5mm Construction Insulated Glass Panels Aluminum Spacer
|Product Name||Insulated Panels||Material||Clear Glass|
|Color||Clear, Green, Blue, Grey, Bronze||Process||Insulated|
|Shape||Curve, Flat||Edge||Sealant Sealed|
|Function||Heat Insulated; Sound Insulated||Glass Thickness||3-19mm|
5+5mm Insulated Glass Panels,
5+5mm thermal insulation Glass Panels,
Aluminum spacer thermal insulation Glass
5mm+5mm Tempered Insulation Glass Clear Toughened Double Glazing Construction Glass
What is Insulated Glass Panels
Insulating glass is a kind of high efficiency, sound insulating and heat insulating glass, composed of two or more layers of flat glass. Using high-strength and high-air-tight composite adhesives around to bond and seal two or more pieces of glass with sealing strips. The middle is filled with dry gas, and the frame is filled with desiccant to ensure the dryness of the air between the glass sheets. Various original glass sheets with different properties can be selected according to requirements, such as colorless transparent float glass, patterned glass, heat-absorbing glass, heat-reflective glass, wired glass, tempered glass, etc.
Applications of Insulated Glass Panels:
- Doors and windows
- Partitions for homes, offices, hotels and other commercial buildings
- Glass Curtain Wall and Facades
- Skylight glass
- Tabletops Glass
- Glass shelves and Cabinets
- Refrigerator Door
Specification of Insulated Glass Panels:
|Product||5mm+5mm Tempered Insulation Glass Clear Toughened Double Glazing Construction Glass|
|Glass Thickness||3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 15mm, 19mm|
|Color||Blue, Green, Brown, Grey, tea color, etc.|
|Advantages||1) Heat isolation and warmth preservation|
|2) Distinct energy-saving effect, decreasing air-conditioning and heating costs|
|3) Good soundproofing performance makes rooms comfortable|
|4) Good anti-frosting and dew-formation properties|
|5) IR reflected|
|Standard insulated glass thickness (Glass+Aluminum spacer+Glass) / mm|
|Item||Glass thick||Product parameter (mm)|
|Double/triple wall insulated glass||4mm||4+4A+4||4+5A+4||4+6A+4|
|Aluminum spacer thickness||4mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm|
|11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, etc|
For other thickness, produce according to customer's requirements
Advantage of Insulated Glass Panels:
1. Energy saving: This is the biggest reason why double-layer windows are selected by users, because its structure determines that its heat transfer coefficient is only one-quarter to half of single-layer windows, which can reduce heat loss by nearly 70%, so it can control the indoor temperature better, and at the same time, it can achieve the effect of warm in winter and cool in summer. It is an ideal energy-saving building material
2. Sound insulation and noise reduction: Double-layer windows can reduce a lot of noise than single-layer windows, giving residents a quiet living environment.
3. Light weight: Under the same heat insulation effect, replacing part of the brick wall or concrete wall with hollow glass can reduce the building load, simplify the building structure, increase the lighting area, and enhance the indoor comfort.
