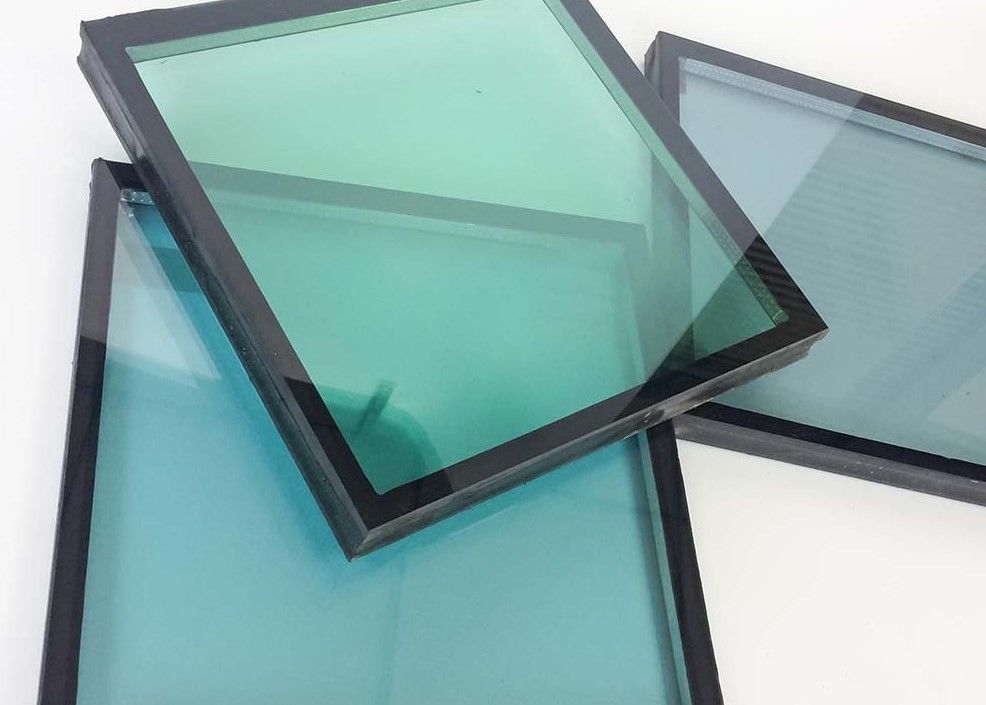

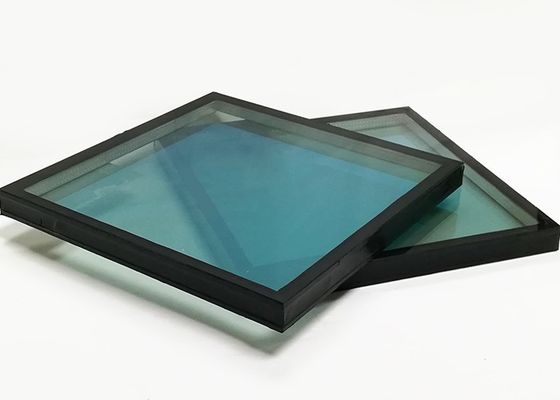

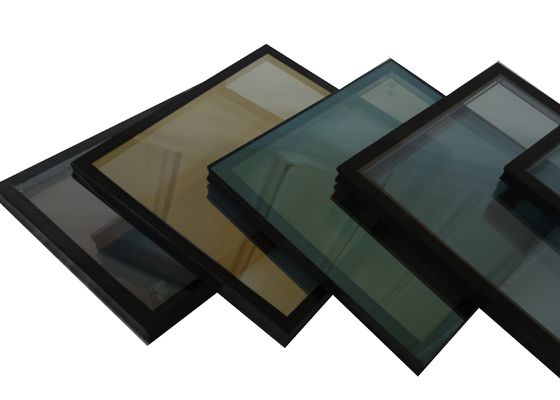

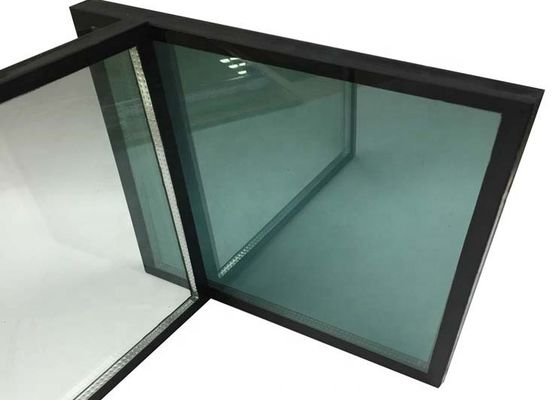

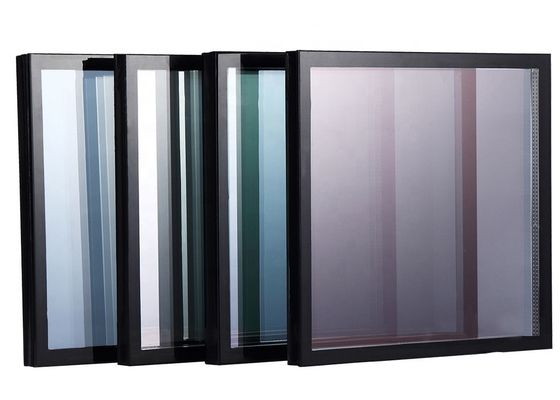

5mm Air Spacer Curved Insulated Tempered Glass Tinted Blue Sealant Sealed

Place of Origin China
Certification Per Request
Model Number Insulated Glass Panels
Minimum Order Quantity 3 Square Meters
Price negotiation
Packaging Details Sea worthy wooden crates
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Insulated Panels Material Clear Glass
Color Clear, Green, Blue, Grey, Bronze Process Insulated
Shape Curve, Flat Edge Sealant Sealed
Function Heat Insulated; Sound Insulated Glass Thickness 3-19mm
High Light

Air Spacer insulated tempered glass


5mm insulated tempered glass


5mm curved insulated glass

Leave a Message
Product Description

Tinted Blue Insulated Glass Air Spacer Double Glazing Insulated Reflective Glass

What is Insulated Glass Panels

Insulating glass / insulating glass is a glass product made of two or more pieces of glass separated by spacers in the middle, and effectively sealed at the edges to form a dry and confined space. According to the difference of spacers, it can be divided into cold edge technology and warm edge technology. Generally using aluminum spacers are called cold-edge technology because of their high thermal conductivity, while the processing technology that uses low-conductivity materials such as stainless steel and composite rubber strips as spacers is called warm-edge technology. A glass product made of aluminum frames filled with high-efficiency molecular sieve adsorbents separated by a certain width, and the edges are bonded with high-strength sealant. In order to ensure the performance of insulating glass, double sealing must be adopted. The first seal adopts butyl rubber. Customers can choose polysulfide glue or silicone structural glue for the second seal according to the needs of the installation method.


Specification of Insulated Glass Panels:

Product Specification
Product Tinted Blue Insulated Glass Air Spacer Double Glazing Insulated Reflective Glass
Glass Thickness 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 15mm, 19mm
Color Blue, Green, Brown, Grey, tea color, etc.
Advantages 1) Heat isolation and warmth preservation
2) Distinct energy-saving effect, decreasing air-conditioning and heating costs
3) Good soundproofing performance makes rooms comfortable
4) Good anti-frosting and dew-formation properties
5) IR reflected
Standard insulated glass thickness (Glass+Aluminum spacer+Glass) / mm
Item Glass thick Product parameter (mm)
Double/triple wall insulated glass 4mm 4+4A+4 4+5A+4 4+6A+4
5mm 5+6A+5 5+7A+5 5+8A+5
6mm 6+6A+6 6+7A+6 6+8A+6
8mm 8+6A+8 8+7A+8 8+8A+8
10mm 10+6A+10 10+9A+10 10+12A+10
12mm 12+9A+12 12+12A+12 12+16A+12
Aluminum spacer thickness 4mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm
11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, etc

For other thickness, produce according to customer's requirements



Applications of Insulated Glass Panels:

  • Doors and windows
  • Partitions for homes, offices, hotels and other commercial buildings
  • Glass Curtain Wall and Facades
  • Skylight glass
  • Tabletops Glass
  • Glass shelves and Cabinets
  • Refrigerator Door

5mm Air Spacer Curved Insulated Tempered Glass Tinted Blue Sealant Sealed 0


Advantage of Insulated Glass Panels:

1. Energy saving: This is the biggest reason why double-layer windows are selected by users, because its structure determines that its heat transfer coefficient is only one-quarter to half of single-layer windows, which can reduce heat loss by nearly 70%, so it can control the indoor temperature better, and at the same time, it can achieve the effect of warm in winter and cool in summer. It is an ideal energy-saving building material
2. Sound insulation and noise reduction: Double-layer windows can reduce a lot of noise than single-layer windows, giving residents a quiet living environment.
3. Light weight: Under the same heat insulation effect, replacing part of the brick wall or concrete wall with hollow glass can reduce the building load, simplify the building structure, increase the lighting area, and enhance the indoor comfort.



Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.

Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.

Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.

Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.

Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.

Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;


VALUES GLASS, a professional supplier of Glass and Mirror in Shanghai, China, sepcializing in deep processing and fine processing. Since the year of 2005, our business has expanded rapidly all over the world, including United States, Australia, South Korea, Germany and other European countries, and our company has won high reputation from customers with efficient communicate, competitive prices, quality products, on time delivery and best service.
