Heat Preservation ICU Insulated Laminated Glass For Greenhouse
|Material||Clear Glass, Tempered Glass, Laminated Glass, Low-E Glass||Glass Color||Clear, Blue, Gray, Green, Etc|
|Feature||Soundproof, Heat Resistant||Application||Greenhouse, Window, Door|
|Spacer Type||6A 9A 12A 15A||Insulating Gas||Air, Vacuum, Argon|

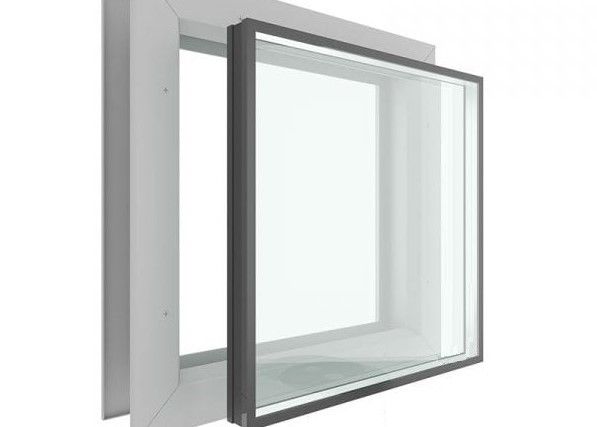

Heat Preservation Insulated Laminated Glass For Greenhouse
Product Description of Insulated Glass:
Insulated glass is made of two or more glass panes, and use sealant gumming glass piece and aluminum spacers which were filled with desiccant together. insulated glass with the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure its airtight. Due to its perfect sound insulation and energy-saving performance, the modern most popular used glass would be blown hollow glass.
Feature of Insulated Glass:
- Heat preservation
Insulation of insulated glass means reducing indoor heat through its outdoor area during the winter, and the smaller the thermal resistance, the better the thermal insulation performance. If the glass is coated with a low-emission film, the radiation emissivity can be reduced to 0.1, and in winter, the heat radiated from the room will be reduced to provide better insulation. If the two inner surfaces of the insulated glass are respectively coated with a sunshade film and a low-radiation film, the hot sun is blocked in summer; in winter, the heat in the room is prevented from being lost, In winter, the temperature in the room is prevented from being lost, and the indoor warm winter and cool summer is achieved.
- Anti-condensation & Reducing Cold Radiation
Inside the insulated glass, there is a desiccant that can absorb water molecules, and the gas is dry; when the temperature is lowered, condensation does not occur inside the insulated glass, and the dew point temperature of the outer surface of the glass also rises. This is the biggest difference between insulated glass and double glass.
- Thermal Insulation
The thermal insulation properties of the insulating glass are mainly its thermal insulation of the gas interlayer, so that the temperature difference between the two sides is close to or even exceeds 10 °C. This is because the gas in the interlayer is in a closed space, the gas does not convect, thus, convective heat transfer and conduction heat transfer account for only a small proportion of the energy transfer of the hollow glass. This effect in turn varies with the wind speed of the glass surface and the radiation of the glass surface. Insulated glass is the use of gas interlayers with a large thermal resistance, especially the formation of an air interlayer that does not cause convection, so that the energy exchange between the indoor and outdoor is greatly reduced, and significant heat insulation effect can be obtained.
Specification of Insulated Glass:
|Product||Insulating Glass / Hollow Glass / Double Glazing Glass|
|Glass Thickness||5mm 6mm 8mm 10mm 12mm 15mm|
|Min size||300mm x 300mm|
|Max size||2500mm x 3500mm|
|Insulating Gas||Air, Vacuum, Argon|
|Glass types||Common Insulated glass, tempered Insulated glass,
Coated Insulated glass, Low-E Insulated glass, etc.
|Application||1. External use of windows, doors, shop fronts in offices, houses, shops, etc
2. Interior glass screens, partitions, balustrades, etc
3. Shop display windows, showcases, display shelves, etc
4. Furniture, table-tops, picture frames, etc
|Lead time||3 weeks after received the payment|
|Shipment way||By Air or Sea|
|Payment term||T/T, Alibaba trade assurance, L/C|

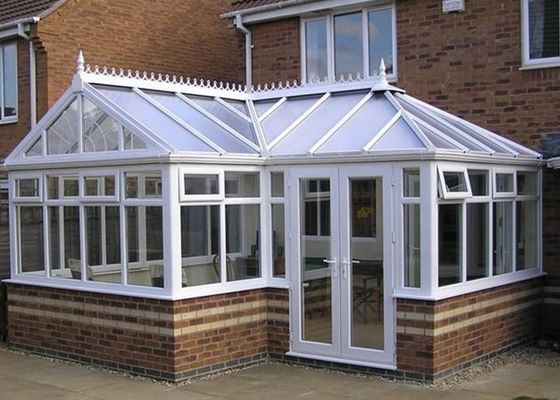

Application of Insulated Glass:
2. Windows and Doors
3. Freezer Door or Cooler Door
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product documents;
-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
-- If urgent case, we will call customers to immediately discuss and solve.
-- Tempered glass, heat strengthened glass, heat soaked glass;
-- Smart glass ( or privacy glass, switchable glass ), self-adhesive PDLC film;
-- LOW E glass, laminated glass, insulated glass, vacuum glass;
-- Anti-reflection glass, Anti Glare Glass;
-- Decorative Glass;
-- Silver mirror, copper free mirror, LED mirror
