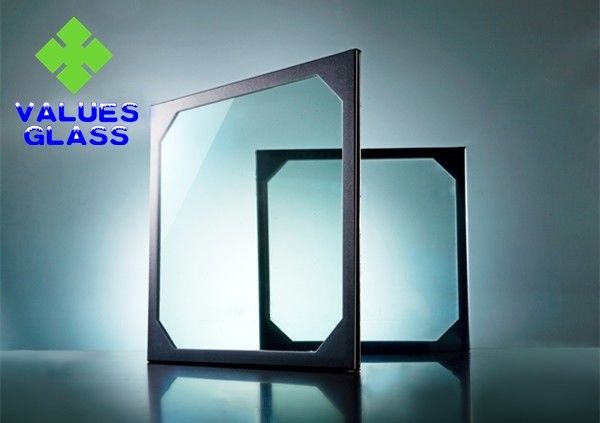

Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness

China Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness supplier

Large Image :  Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness

Product Details:

Place of Origin: China
Brand Name: VALUES GLASS
Certification: Upon Request
Model Number: Vacuum Glass

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: Plywood Pallet or per request
Delivery Time: 14 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8,000 sq.meter/Month
Contact Now
Detailed Product Description
Raw Material: Clear Glass, LOW E Glass, Low Iron Glass U Value: 0.4W/(m2*K)
Thickness: 8.3mm Glass: Fully Tempered, Half Tempered
Application: Window, Door, Curtain Wall, Skylight Product Name: Vacuum Insulated Glass

Vacuum Glass Vacuum Insulated Glass Energy Saving Glass Vacuum Laminated Glass





Product Description:

Product Name

Vaccum Glass

Raw Material Glass

Clear Glass, LOW E glass, Low Iron Glass

Thickness

8.3mm

Max Size

1,500*2,500mm

Min Size

300 * 300mm

U Value

0.4W/(m2*K)





Theory & Structure:

Vacuum glass is based on the proven vacuum thermos bottle.

By separating two panes of glass with small pillars and sealing the edges, a micro-void space is created between the two panes, all of the air is removed. The height of the void space between the panes is kept 0.2 mm by the tiny pillars, and the vacuum is pulled down to 10-4 Pa.

Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness

Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness




Combination:

Due to the inside vacuum, the conduction and convection of heat between the panes is almost nil. In addition, the LOW-E coating reflects more than 85% of the infrared back into the room. For these reasons, vacuum glass windows prevent nearly all heat loss from conduction, convection and radiation.

Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness







Advantage:

-- Better U Value, Less Weight.

Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness

Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness



Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness



Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness



Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness





Tempered Vacuum Insulated Glass , Thermal Insulation Glass 8.3mm Thickness
