Soundproof Laminated Glass Sheets For Railing / Skylights / Escalators

Good quality Insulated Glass Panels for sales
Good quality Insulated Glass Panels for sales
I'm Online Chat Now

Soundproof Laminated Glass Sheets For Railing / Skylights / Escalators

China Soundproof Laminated Glass Sheets For Railing / Skylights / Escalators supplier

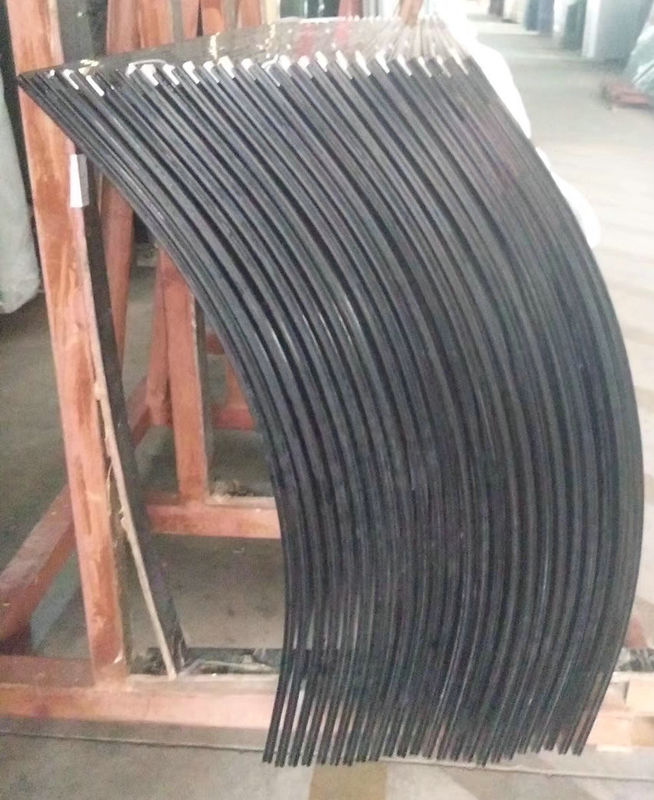

Large Image :  Soundproof Laminated Glass Sheets For Railing / Skylights / Escalators

Product Details:

Place of Origin: China
Brand Name: VALUES GLASS
Certification: Per Request
Model Number: Laminated Glass

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Plywood Pallet or per request
Delivery Time: 14 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10,000 sq.meter/Month
Contact Now
Detailed Product Description
Name: Laminated Glass Sheets Glass Thickness: 3, 4, 5, 6, 8, 10mm
Feature: Soundproof Film Type: PVB, EVA, SGP
Film Color: Clear, Milky, Grey, Black, Red, Blue, Green Etc Application: Railing / Skylights / Escalators

Soundproof Laminated Glass Sheets For Railing / Skylights / Escalators



Laminated Glass Sheets​ Introduction



LAMINATED GLASS is made by good quality adhesive interlayer and advanced bond technology. Laminated Glass is a kind of glass made up of two or more sheets of top quality glass bonded together with PVB or SGP interlayer.

After the PVB interlayer has been placed between the glass sheets, the whole assembly is subjected to heat and pressure. This makes the complete adhesion of the vinyl and the glass. In the event of breakage, the glass fragments remain bonded to the plastic interlayer.



The thickness of the monolithic glass and the thickness of the PVB interlayer film, different colors, will give different performance. Among those, transparent color is the most popular.This makes the complete adhesion of the vinyl and the glass.

SGP glass is a kind of laminated glass. After special pre-pressing (or vacuuming) and high-temperature and high-pressure processing, the glass and film are permanently bonding together as one of the composite glass products. The film of SGP glass is SentryGlas®Plus film (SGP film), so SGP glass can be called SGP laminated glass or SentryGlas/Structrual Glass.



Laminated Glass Sheets​ Type



Laminated glass contains annealed laminated glass and toughened laminated glass.

Toughened laminated glass refers to further safe treatment after glass tempering, bonding two pieces of glass together. After the glass breaks, it will not splash and hurt people, which will play a safe role.



Laminated Glass Sheets​ Introduction characteristics

  1. safety: In external impact, due to the elastic layer of the role of the impact of absorption can prevent the prevent the impact of penetration, Even the glass is broken, but only produce spider-like crushing cracks, its debris firmly adhered to the middle layer and will not fall off and scattered and can continue to use until more change.
  2. anti-theft: PVB laminated glass is very tough, even if the thieves broken glass, because the middle layer with the glass firmly together to keep the integrity.
  3. sound insulation: PVB film has a damping function of the acoustic wave, PVB laminated glass can effectively suppress the spread of noise, especially in airport, stations, downtown and roads on both sides of the building. After the installtion laminated glass, the sound insulation effect is very obvious .
  4. UV protection: PVB film can absorb more than 99% of UV, thus protecting indoor furniture, plastic products, textiles, carpets, art, ancient artifacts or goods from UV radiation of the line and occurrence of fading and aging.
  5. energy saving: PVB film can made of building laminated glass can effectively reduce the sunlight through. With the thickness of the use of dark low light transmittance PVB film made of laminated gass to block the heat more powerful.At present,domestic production of laminated glass with a variety of colors.

Laminated Glass Sheets​ Applications:

  1. Railing
  2. Skylights
  3. Escalators
  4. Greenhouse
  5. Shower enclosure
  6. Swimming pools fence
  7. Facades and curtain walls
  8. Windows and doors in architecture

Laminated Glass Sheets​ Introduction Parameters



Product Name

Soundproof Laminated Glass Sheets For Railing / Skylights / Escalators

Raw Material Glass

Clear Glass, Ultra Clear Glass, Bronze Glass, Grey Glass, Blue Glass, Green Glass

Thickness

3, 4, 5, 6, 8, 10mm

Thickness tolerance

T=2~6mm:      ±0.2mm

T=8~19mm:    ±0.3mm

Max dimension

6,000 * 3,000mm

Holes or cutout

Drawing or Sketch Needed

Lamination

Can be two glasses, three glasses or four glasses laminated
