Anti Skid Smart 5mm Toughened Electric Dimming Glass Panels

Place of Origin China
Brand Name VALUES GLASS
Certification Upon Request
Model Number Smart Glass
Minimum Order Quantity 1 Pcs
Price Negotiable
Packaging Details Plywood Pallet or per request
Delivery Time 14 Days
Payment Terms T/T, L/C, Western Union
Supply Ability 10,000 sq.meter/Month
Product Details
Product Switchable Smart Glass Technique Lamination
Material Clear Glass Structure Solid
Shape Flat, Curved Color Clear, Milky, Grey, Blue, Green, Red
Thickness 5+5mm / 6+6mm Application Door, Office, Bank, Hotel, Hospital
High Light

Toughened Dimming Glass Panels

,

5mm Toughened Electric Dimming Glass

,

5mm Dimming Glass Panels

Leave a Message
Product Description

5mm 6mm Electronic Dimming Switchable Smart Glass Used for Bank



Smart glass is a glass that uses electricity to adjust the sight of light. It's also called switchable glass, intelligent glass or privacy glass. Smart glass is actually a high-tech smart film installed between two layers of glass and processed into laminated glass at high temperature and high pressure. It has the function of "transparent when energized and opaque when power is off. When the power is turned off, the liquid crystal molecules in the glass are scattered irregularly, so light cannot pass through, and the glass is milky white; When the power is turned on, the liquid crystal molecules are arranged neatly, and light can enter, and the glass is transparent.



Type of Switchable Smart Glass:



1. Water proof smart glass
2. Bullet proof smart glass
3. Smart glass door / windows, smart glass partitions
4. Smart glass bathroom
5. Smart glass projection screen
6. Hollow sound insulation smart glass
7. Energy saving and environmental protection smart glass
8. Colorful smart glass/Digital printing dimmer Glass
9. Anti-skid smart glass
10. LED smart glass
11. UV protect smart glass



Product Description of Switchable Smart Glass:



  Power ON Power OFF
Light transmittance: Parellel light: >=66% <=1.5%
Visible light: Common Film >=83% >=55%
High Transmittance Film >=88% >=57%
Haze: <=3% >=90%
Response time: <10ms <200ms
Viewing angle: >=150°
Voltage: Input: AC220V, AC110V, DC24V, DC12V
Operating voltage: AC48V
Threshold voltage: <=20V
Frequency: Operating frequency: 30~400Hz
Optimum operating frequency: 50Hz
Power consumption: <=5W/m2
Continued opening time: >80,000h
Continued ON and OFF times: >80,000,000
Insulation Resistance: >2M Ω
Operating temperature: Between -10℃ and 65 ℃.
Storage temperature: Between -20℃ and 80 ℃.
Thickness: 0.65mm
Max dimension: Individual piece <=1.5 * 3.2 meters
Roll 0.93/1.2/1.5(W) x 20/30/50M(L)
Adhesion for silicon glue & glass: 20g/mm
Adhesion for PDLC film: 50g/mm



Our advantage:


  • Our smart glass could be produced with two methods, with autoclave and with oven.
  • Our smart glass has the best transparency when power on , least haze, and it has a good privacy function when power off.
  • Both flat and bent smart glass could be provided as per design request.
  • Professional seaworthy wooden crate packing for LCL and client receive it safely.
  • Best Service before and after sales.
  • Best technical support from our professional team with years experience.

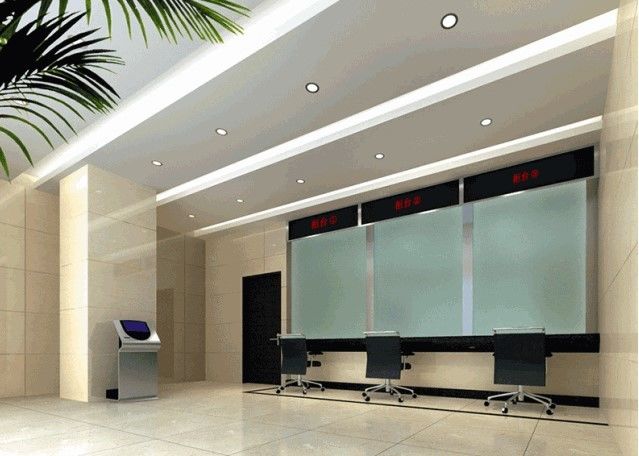

Application of Switchable Smart Glass:



  • Executive offices and conference room
  • Control room of government facilities
  • Family household and apartments
  • Storefronts & Windows
  • Privacy / security glass
  • Glass walls doors
  • Partitions / Vision panels



Anti Skid Smart 5mm Toughened Electric Dimming Glass Panels 0



Packaging & Delivery:



Standard export package: Plywood or wooden crate

Corner protector and protective film is available

Crates shall be banded by steel bands



About Us:


VALUES GLASS, a continuous growing company, located in Shanghai, China.



Since year of 2005, we stepped on furnish glasses;

Since year of 2010, our ranges are expanded to building glasses;

Since year of 2014, VALUES GLASS in Shanghai is established to meet business growth;



VALUES GLASS, aim to deliver ADDED VALUE for partners by:
-- Competitive price;
-- Quality products;
-- On time delivery;

-- Efficient communication;



VALUES GLASS, contribute to partners’ success with our expertise & knowhow!


Main ranges:



-- Tempered glass;

-- Insulated glass;

-- Laminated glass;

-- Smart glass & self-adhesive PDLC film;

-- Non-reflective glass panels, anti-glare glass panels;

-- Vacuum glass;

-- Stained / fused glass;

-- LED glass, LED mirror;
