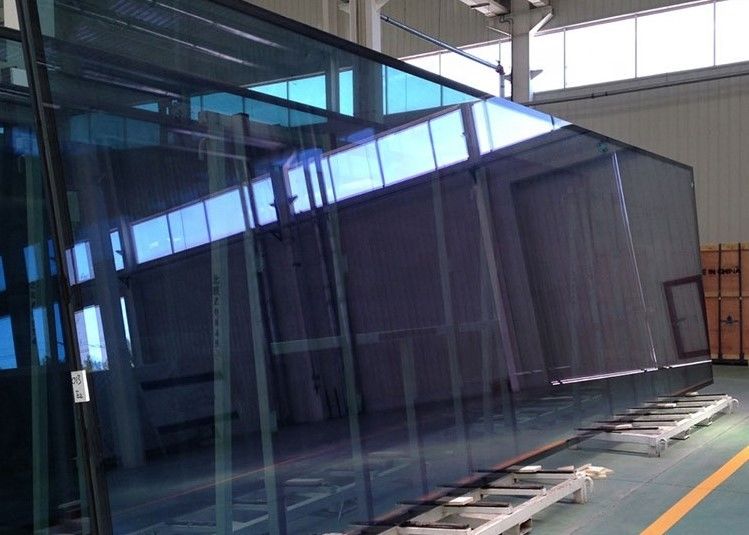

Jumbo Overlength Insulated Glass Panels With Gas Infill

Place of Origin China
Brand Name VALUES GLASS
Certification Per Request
Model Number Insulated Glass Panels
Minimum Order Quantity 5 pieces
Price negotiation
Packaging Details Sea worthy wooden crates
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Insulated Panels Material Clear Glass
Color Clear, Green, Blue, Grey, Bronze Glass Thickness 3-19mm
Process Insulated Shape Curve, Flat
Edge Sealant Sealed Application Windows; Glass
High Light

Overlength Insulated Glass Panels

,

Jumbo Insulated Glass Panels

,

Overlength heat insulating glass Panels

Leave a Message
Product Description

Overlength Insulating Tempered Glass Jumbo Size Glass Tempered Building Glass



What is Insulated Glass Panels

Insulating glass is a kind of high efficiency, sound insulating and heat insulating glass, composed of two or more layers of flat glass. Using high-strength and high-air-tight composite adhesives around to bond and seal two or more pieces of glass with sealing strips. The middle is filled with dry gas, and the frame is filled with desiccant to ensure the dryness of the air between the glass sheets. Various original glass sheets with different properties can be selected according to requirements, such as colorless transparent float glass, patterned glass, heat-absorbing glass, heat-reflective glass, wired glass, tempered glass, etc.



Why we choose Insulated Glass Panels:

1. Insulated glass could reduce the heat gain and heat loss. Adding multiple layers of glass with gas infill further protects the windows and building from heat loss.
2. Insulated glass could increases the energy efficiency in buildings. With Low-E and reflective coatings, it can further improve the efficiency of the windows by further limiting the heat transfer. This drastically cuts down the electrical bills especially in areas subjected to extreme heat or cold.
3. Insulated glass helps in sound insulation and improves the acoustics of the place. The inert gas does not allow noise to pass through and will make our living environment more quiet.
4. Reduce direct sunlight and UV rays entering the room through the windows. This prevents the fading of photographs, paintings, curtains, carpets and sofa fabrics than can be caused by the UV effect of sunrays.
5. Insulated glass can also act as a safety and security glass. It is much more difficult and will takes longer time to break it in comparison to a single pane glass.
6. Insulated glass extensively finds its use in Green buildings and plays a very important role by reducing the building’s carbon footprint and making it sustainable.



Applications of Insulated Glass Panels:

  1. Commercial and Residential Windows and doors
  2. Facades and curtain walls
  3. Sloped and overhead glazing
  4. Refrigerator or freezer door

Specification of Insulated Glass Panels:

Product Specification
Product Overlength Insulating Tempered Glass Jumbo Size Glass Tempered Building Glass
Glass Thickness 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 15mm, 19mm
Color Blue, Green, Brown, Grey, tea color, etc.
Advantages 1) Heat isolation and warmth preservation
2) Distinct energy-saving effect, decreasing air-conditioning and heating costs
3) Good soundproofing performance makes rooms comfortable
4) Good anti-frosting and dew-formation properties
5) IR reflected
Standard insulated glass thickness (Glass+Aluminum spacer+Glass) / mm
Item Glass thick Product parameter (mm)
Double/triple wall insulated glass 4mm 4+4A+4 4+5A+4 4+6A+4
5mm 5+6A+5 5+7A+5 5+8A+5
6mm 6+6A+6 6+7A+6 6+8A+6
8mm 8+6A+8 8+7A+8 8+8A+8
10mm 10+6A+10 10+9A+10 10+12A+10
12mm 12+9A+12 12+12A+12 12+16A+12
Aluminum spacer thickness 4mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm
11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, etc
Remark

For other thickness, produce according to customer's requirements



Packing & Shipping:
1. Strong wooden crates
2. Safety for oversea transportation
3. The max weight of each wooden crate is 1.5-1.8 tons

Jumbo Overlength Insulated Glass Panels With Gas Infill 0



FAQ:

Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.

Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.

Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.

Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.

Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.

Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;



VALUES GLASS, a professional supplier of Glass and Mirror in Shanghai, China, sepcializing in deep processing and fine processing. Since the year of 2005, our business has expanded rapidly all over the world, including United States, Australia, South Korea, Germany and other European countries, and our company has won high reputation from customers with efficient communicate, competitive prices, quality products, on time delivery and best service.
