Triangle Insulated Glass Low E Insulated Glass Panels

Place of Origin China
Brand Name VALUES GLASS
Certification Per Request
Model Number Insulated Glass Panels
Minimum Order Quantity 5 pieces
Price negotiation
Packaging Details Sea worthy wooden crates
Supply Ability 10,000 sq.meter/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Insulated Panels Material Clear Glass
Color Clear, Green, Blue, Grey, Bronze Process Insulated
Shape Curve, Flat Edge Sealant Sealed
Function Heat Insulated; Sound Insulated Glass Thickness 3-19mm
High Light

Low E Insulated Glass Panels

,

3MM Insulated Glass Panels

,

3MM low e glass panels

Leave a Message
Product Description

Custom Shape Insulated Glass Triangle Round Shape Insulated Glass Low-E


What is Insulated Glass Panels

Insulated glass has multiple panes separated by air or inert gas filled in the middle. These are also called double glazing glass and insulated glazing unit (IGU). Double glazing glass has two glass panes separated by air space and sealed at the edges. The design principle of double-pane glass is to reduce the transfer of heat and aesthetically serve the purpose of building insulation. This significantly helps in the regulation of indoor temperature and serves as a barrier against unwanted heat and noise. Its amazing sound control abilities make it ideal for residential settings where the need for seclusion is the most. Multiple layers of glass also augment the strength of the design element and make it more durable and strong. The increased strength is one of the main reasons why such glass is normally preferred for commercial and industrial use. Made with modern-day glass, insulated glass units are available in multiple thicknesses and can be made with laminated or tempered glass.



Advantage of Insulated Glass Panels:

1. Sound insulation and noise reduction: Double-layer windows can reduce a lot of noise than single-layer windows, giving residents a quiet living environment.

2. Energy saving: This is the biggest reason why double-layer windows are selected by users, because its structure determines that its heat transfer coefficient is only one-quarter to half of single-layer windows, which can reduce heat loss by nearly 70%, so it can control the indoor temperature better, and at the same time, it can achieve the effect of warm in winter and cool in summer. It is an ideal energy-saving building material
3. Heat preservation: Insulated glass could reduce the heat gain and heat loss. Adding multiple layers of glass with gas infill further protects the windows and building from heat loss.



Specification of Insulated Glass Panels:

Product Specification
Product Custom Shape Insulated Glass Triangle Round Shape Insulated Glass Low-E
Glass Thickness 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 15mm, 19mm
Color Blue, Green, Brown, Grey, tea color, etc.
Advantages 1) Heat isolation and warmth preservation
2) Distinct energy-saving effect, decreasing air-conditioning and heating costs
3) Good soundproofing performance makes rooms comfortable
4) Good anti-frosting and dew-formation properties
5) IR reflected
Standard insulated glass thickness (Glass+Aluminum spacer+Glass) / mm
Item Glass thick Product parameter (mm)
Double/triple wall insulated glass 4mm 4+4A+4 4+5A+4 4+6A+4
5mm 5+6A+5 5+7A+5 5+8A+5
6mm 6+6A+6 6+7A+6 6+8A+6
8mm 8+6A+8 8+7A+8 8+8A+8
10mm 10+6A+10 10+9A+10 10+12A+10
12mm 12+9A+12 12+12A+12 12+16A+12
Aluminum spacer thickness 4mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm
11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, etc
Remark

For other thickness, produce according to customer's requirements



Applications of Insulated Glass Panels:

  • Doors and windows
  • Partitions for homes, offices, hotels and other commercial buildings
  • Glass Curtain Wall and Facades
  • Skylight glass
  • Refrigerator Door

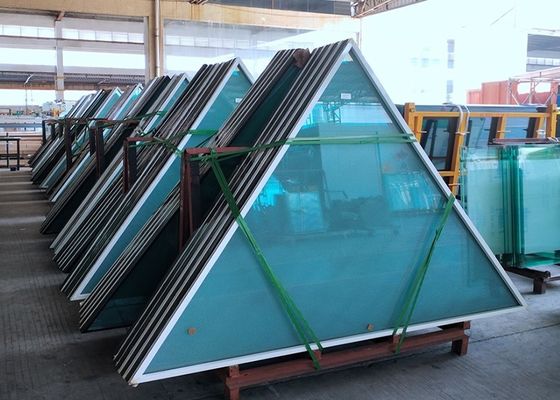

Triangle Insulated Glass Low E Insulated Glass Panels 0

Triangle Insulated Glass Low E Insulated Glass Panels 1



FAQ:

Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help us calculate costs for you.

-- CIF price is also available if destination port is provided.

Q2: How about sample and freight cost?

-- In general, we provide free samples, customers take freight cost.

Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity & order quantity.

Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;

-- To transfer customers requirements to internal product documents;

-- Complete quality assurance system from IQC to OQC. Outgoing inspection record is available for each order.

Q5: What about the payment?

-- T/T, L/C, Ali Trade Assurance, Western Union.

Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or Wechat etc;
